| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,872 pcs
|
1872 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Contact Finish | |
| Contact Layout, Typical | |
| Features | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Tape & Reel | |
| Termination |

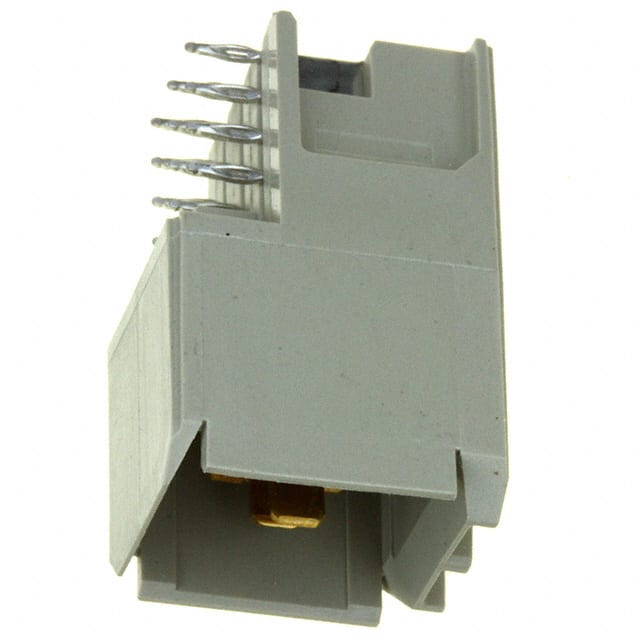

The TE Connectivity 5223963-1 is a specialized backplane connector designed for power distribution. It is a header with male blades, featuring a blade power connector style. The connector has 3 positions in a single row, with all positions loaded. It offers a contact layout typical of 3 power contacts. The mounting type is board edge, through hole, right angle, allowing flexible placement on the edge of a PCB. Termination is via press-fit, which provides a reliable solderless connection. The contact finish is gold or gold-palladium, ensuring good conductivity and corrosion resistance. The connector is gray in color and includes a board guide feature for alignment during mating. It is intended for backplane usage, making it suitable for high-density power applications in servers, switches, and industrial equipment. The connector is RoHS3 compliant and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $9.98 | $9.98 |
| 10+ | $9.76 | $9.76 |
| 25+ | $7.59 | $7.59 |
| 48+ | $7.02 | $7.02 |
| 96+ | $6.40 | $6.40 |
| 288+ | $6.30 | $6.30 |
| 528+ | $6.12 | $6.12 |
| 1,008+ | $5.62 | $5.62 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions.
Board edge, through hole, right angle.
Press-fit.
Gold or gold-palladium.
1 row.
Yes, RoHS3 compliant (unverified).
Backplane.
