| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,100 pcs
|
2100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
350 pcs
|
350 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
350 pcs
|
350 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Contact Finish | |
| Contact Layout, Typical | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Termination |

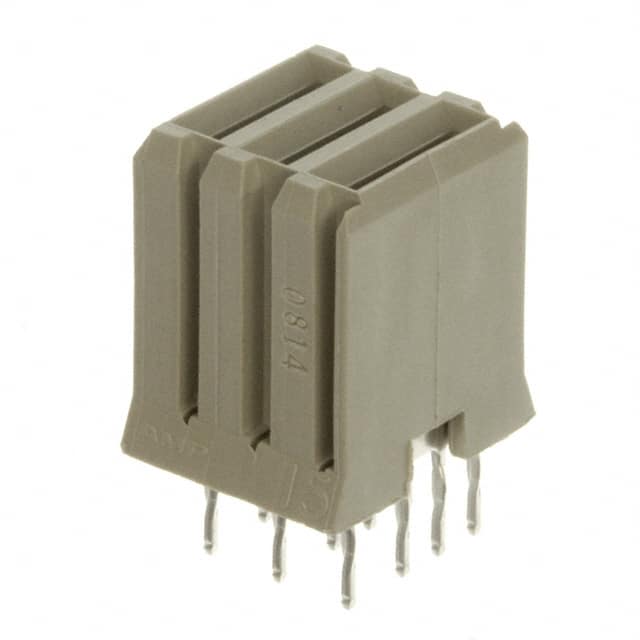

The TE Connectivity 5223955-2 is a blade power receptacle designed for backplane applications. This connector features a receptacle, female blade socket design with 3 power positions arranged in a single row. All positions are loaded, providing a full 3-power contact layout.
This connector utilizes through hole mounting with press-fit termination, ensuring a reliable mechanical and electrical connection to the PCB. The contacts are finished with gold or gold-palladium, offering good conductivity and corrosion resistance. The connector body is gray in color.
The 5223955-2 is a specialized backplane connector suitable for power distribution within electronic systems. It is listed as RoHS3 compliant with MSL level 1 (unlimited) and REACH unaffected, though these compliance claims are unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.02 | $7.02 |
| 10+ | $5.97 | $5.97 |
| 25+ | $5.59 | $5.59 |
| 60+ | $5.26 | $5.26 |
| 120+ | $5.01 | $5.01 |
| 300+ | $4.69 | $4.69 |
| 540+ | $4.50 | $4.50 |
| 1,020+ | $4.31 | $4.31 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This connector has 3 positions (3 power), all loaded.
Through hole mounting with press-fit termination.
Gold or gold-palladium.
Backplane usage.
