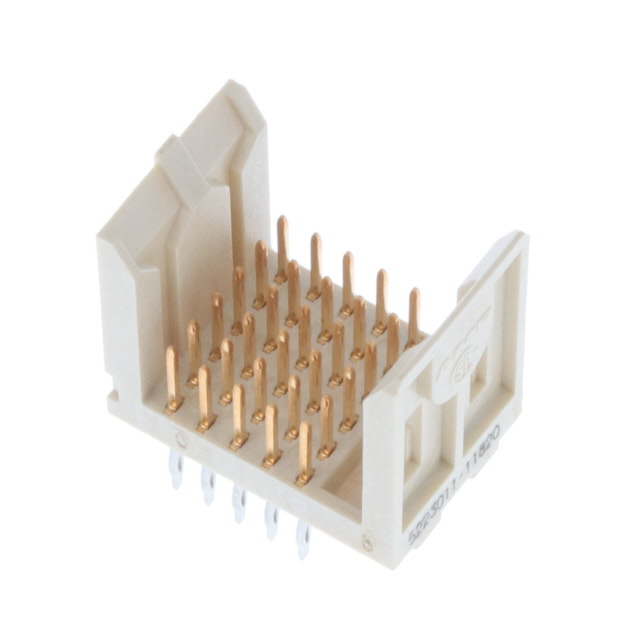

5223010-1 TE Connectivity 5223010-1 is a Futurebus header connector with 30 positions in 5 rows, 2.00mm pitch, through hole mounting, and gold contact finish.
Mfr Part #:

5223010-1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 5223010-1 is a Futurebus header connector with 30 positions in 5 rows, 2.00mm pitch, through hole mounting, and gold contact finish.
✓ Total Stock: 4 pcs
$ Price Range: $3.26

5223010-1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5223010-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connector Style
Connector Type
Contact Finish
Features
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Pitch
SVHC Present
Tape & Reel
Termination
View Similar Products (0)

5223010-1 Description

Short technical summary and product information.

This is a TE Connectivity 5223010-1 Futurebus header connector. It features 30 positions arranged in 5 rows with a 2.00mm pitch. All positions are loaded. The connector uses through hole mounting and solder termination.



The contacts are finished with gold for reliable conductivity. The connector body is natural in color and includes a board guide feature for alignment during assembly.



This connector is designed for backplane applications requiring high-density interconnections. The Futurebus style is suitable for specialized backplane systems.

5223010-1 Quick Information

Product Type: Specialized Backplane Connector
Series: Futurebus
Canonical Name: TE Connectivity 5223010-1 Futurebus Header, Male Pins, 30 Position, 2.00mm Pitch, Through Hole
Subcategory: Futurebus Connector

5223010-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5223010-1 Estimated Pricing

Qty Low High
4,032+ $3.26 $3.26

Estimated market price range - modelled values for guidance only, not live distributor offers.

5223010-1 Features

  • 30 positions in 5 rows configuration.
  • 2.00mm pitch for high density.
  • Through hole mounting with solder termination.
  • Gold contact finish for reliability.
  • Includes board guide for alignment.

5223010-1 Applications

  • Used in backplane interconnect systems.
  • Suitable for Futurebus standard applications.
  • Ideal for high-density PCB connections.

5223010-1 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 5223010-1 have?

30 positions.

What is the pitch of this connector?

2.00mm (0.079 inches).

What is the mounting type?

Through hole.

How many rows does it have?

5 rows.

What is the contact finish?

Gold.

What termination method is used?

Solder.

Does it have any special features?

Yes, it includes a board guide.
