| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
65 pcs
|
65 pcs | On Request | 1 | On Request | On Request | 749 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Termination | |
| Termination Style |

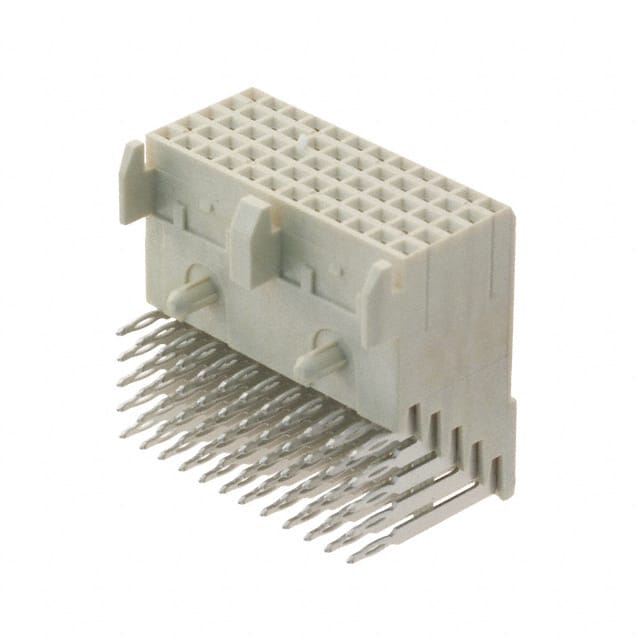

The TE Connectivity 5223008-2 is a 60-position Futurebus socket designed for edge-mount applications in backplane systems. This receptacle features 5 rows of female contacts with a 2.00mm pitch, providing a high-density interconnect solution for demanding environments.
All 60 positions are loaded with gold-plated contacts to ensure reliable electrical performance. The connector uses press-fit termination, eliminating the need for soldering and simplifying assembly. It mounts via board edge, through hole, right angle configuration, offering flexibility in PCB layout.
The connector body is natural in color and includes a spacer feature for proper alignment during installation. This part is RoHS3 compliant, REACH unaffected, and rated MSL 1 (unlimited floor life), supporting lead-free manufacturing processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $18.12 | $18.12 |
| 24+ | $14.48 | $14.48 |
| 48+ | $13.79 | $13.79 |
| 72+ | $13.40 | $13.40 |
| 120+ | $12.92 | $12.92 |
| 264+ | $12.22 | $12.22 |
| 504+ | $11.68 | $11.68 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 60 positions, all loaded.
The pitch is 2.00mm (0.079").
Board edge, through hole, right angle.
Press-fit termination.
Yes, RoHS3 compliant (unverified).
MSL 1 (unlimited floor life) (unverified).
Gold contact finish.
