| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Features | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Tape & Reel | |
| Termination |

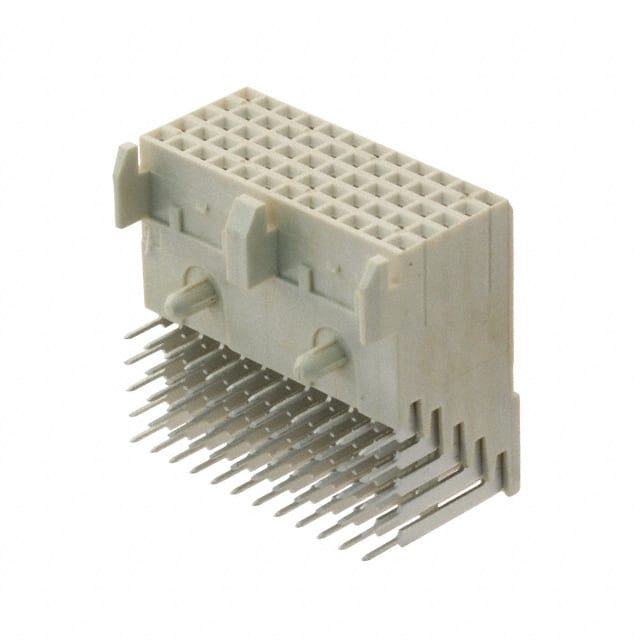

The TE Connectivity 5223004-2 is a Futurebus receptacle connector designed for high-density backplane applications. It features 60 female socket contacts arranged in 5 rows with a 2.00mm pitch. The connector is mounted using a board edge, through hole, right angle configuration and terminated with solder connections. The contacts are finished with gold for reliable performance. The connector is natural in color and includes a spacer feature. This connector is suitable for specialized backplane systems requiring high signal density in a compact form factor.
| Qty | Low | High |
|---|---|---|
| 1+ | $13.10 | $13.10 |
| 10+ | $11.62 | $11.62 |
| 24+ | $11.16 | $11.16 |
| 48+ | $10.72 | $10.72 |
| 120+ | $10.12 | $10.12 |
| 264+ | $9.23 | $9.23 |
| 504+ | $8.61 | $8.61 |
| 1,008+ | $8.43 | $8.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
60 positions.
2.00mm (0.079 inches).
Board edge, through hole, right angle.
5 rows.
Gold.
Solder.
According to available data, it is RoHS3 compliant.
