| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Features | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Tape & Reel | |
| Termination |

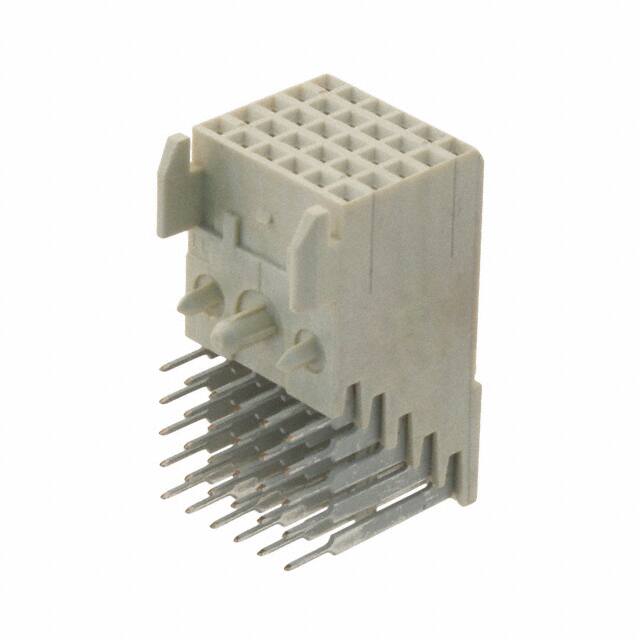

The TE Connectivity 5223004-1 is a specialized backplane connector designed for Futurebus systems. It is a receptacle with female sockets, offering 30 positions loaded in 5 rows with a 2.00mm pitch. The connector is natural in color and includes board guide and spacer features for alignment and stability. Mounting options include board edge, through hole, and right angle configurations, terminated via solder. Contacts are finished with gold for reliable conductivity. This connector is suitable for high-density backplane applications requiring robust mechanical and electrical connections. It is RoHS3 compliant and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $8.44 | $8.44 |
| 10+ | $7.63 | $7.63 |
| 25+ | $7.21 | $7.21 |
| 48+ | $7.03 | $7.03 |
| 96+ | $6.68 | $6.68 |
| 288+ | $5.98 | $5.98 |
| 528+ | $5.63 | $5.63 |
| 1,008+ | $4.98 | $4.98 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
30 positions.
2.00mm (0.079 inches).
Board edge, through hole, right angle.
5 rows.
Gold.
Natural.
Board guide and spacer.
