| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accomodates a Fuse | |
| Allowable Operation Temperature | |
| Approval Agency | |
| Climatic Category | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Dielectric Strength (Minimum @ Between L-N) | |
| Dielectric Strength (Minimum @ Between L/N-PE) | |
| Filter Type | |
| Fuse Holder, Drawer | |
| Ingress Protection | |
| Lead Style | |
| Leakage Current (Maximum @ 250 V / 60 Hz) | |
| MTBF | |
| Material Flammability Rating | |
| Medical Grade | |
| Mounting Type | |
| Number of Positions | |
| Panel Cutout Dimensions | |
| Panel Thickness (@ Snap-in mounting) | |
| Protection Class | |
| Rated Power Acceptance @ Ta 23 °C | |
| Ratings IEC | |
| Ratings UL/CSA | |
| Storage Temperature | |
| Termination | |
| Termination Style | |
| Voltage Rating | |
| panel_thickness (Maximum @ Screw mounting) |

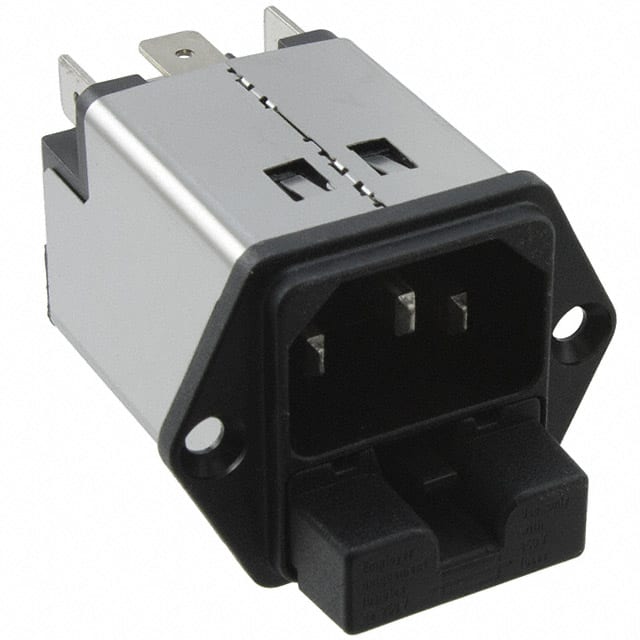

The Schurter 5220.0623.3 is a power entry module that combines an IEC 320-C14 appliance inlet with an EMI/RFI line filter and a 2-pole fuseholder for 5x20mm fuses. It features a compact design with a stainless steel filter case and potted filter for high reliability. The module is rated for 6A at 250VAC and offers both standard (<0.5 mA) and medical (<5 µA) leakage current options. Electrical isolation meets 1.7 kVDC between line and neutral and 2.7 kVDC between line/neutral and ground.
The module supports panel mounting with either screw-on (max panel thickness 8 mm) or snap-in (0.8 to 3 mm) methods. Terminations are quick connect 0.250 inch (6.3 mm) tabs. The front side is rated IP40 for splash protection. The thermoplastic housing is UL 94V-0 rated for flammability. It is approved by cULus and ENEC for international use.
This power entry module is suitable for applications requiring filtered AC power entry with fuse protection, including medical equipment (per IEC/UL 60601-1), commercial electronics, and industrial controls. The operating temperature range is -25°C to 85°C with a MTBF of 2,300,000 hours.
| Qty | Low | High |
|---|---|---|
| 1+ | $38.34 | $38.34 |
| 10+ | $32.59 | $32.59 |
| 30+ | $30.16 | $30.16 |
| 50+ | $29.09 | $29.09 |
| 100+ | $27.70 | $27.70 |
| 250+ | $25.97 | $25.97 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 3 positions.
The current rating is 6 A at 250 VAC.
The voltage rating is 250 VAC.
It supports panel mount with flange (screw-on) or snap-in mounting. Maximum panel thickness for screw is 8 mm, for snap-in 0.8 to 3 mm.
Yes, it accommodates a 5x20 mm fuse (fuse not included). The fuseholder is 2-pole.
It is approved by cULus and ENEC.
The allowable operating temperature is -25°C to 85°C.
