| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,000 pcs
|
8000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Wire Gauge |

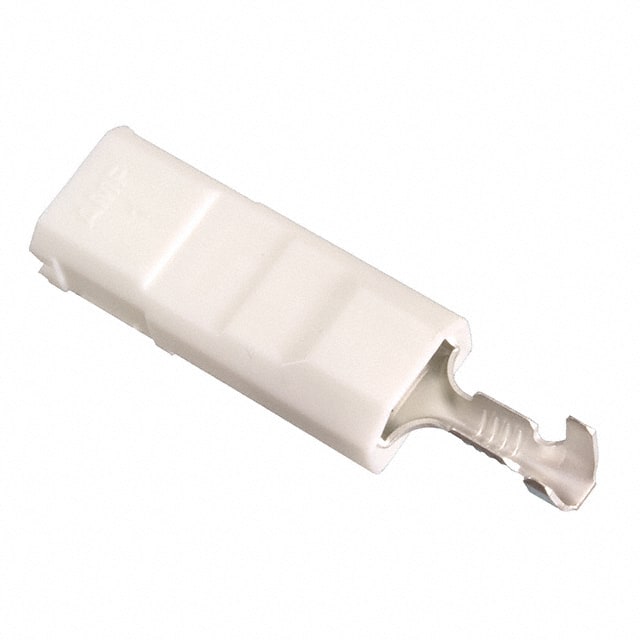

The TE Connectivity 521368-2 is a fully insulated FASTON quick disconnect receptacle from the Ultra-Pod series, designed for reliable one-step termination. It accommodates 18-22 AWG wire with a crimp termination (F-Crimp) and features a 0.250" (6.35mm) tab width for standard quick disconnect mating. The contact is made of tin-plated brass, ensuring good conductivity and corrosion resistance.
This receptacle is fully insulated with a natural color housing, providing protection against shock and short circuits. It is rated for 600V applications and meets UL 94 V-2 and V-0 flammability standards, making it suitable for a wide range of environments. The free hanging (in-line) mounting style allows for easy integration into wire harnesses.
Typical applications include household appliances, HVAC equipment, lawn and garden tools, industrial machinery, vending machines, automotive, marine, and consumer electronics. The Ultra-Pod design enables high-speed automatic application, reducing assembly time and cost.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.44 | $0.44 |
| 10+ | $0.38 | $0.38 |
| 25+ | $0.35 | $0.35 |
| 50+ | $0.34 | $0.34 |
| 100+ | $0.32 | $0.32 |
| 250+ | $0.30 | $0.30 |
| 500+ | $0.29 | $0.29 |
| 1,000+ | $0.27 | $0.27 |
| 2,000+ | $0.26 | $0.26 |
| 4,000+ | $0.25 | $0.25 |
| 6,000+ | $0.24 | $0.24 |
| 10,000+ | $0.23 | $0.23 |
| 14,000+ | $0.23 | $0.23 |
| 20,000+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Free Hanging (In-Line).
18-22 AWG.
0.250 inches (6.35mm).
Yes, it is fully insulated.
Crimp termination (F-Crimp).
Brass contact with tin plating.
UL 94 V-2 and V-0.
