| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Plating | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Housing Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Termination | |
| Termination Style | |
| Voltage Rating |

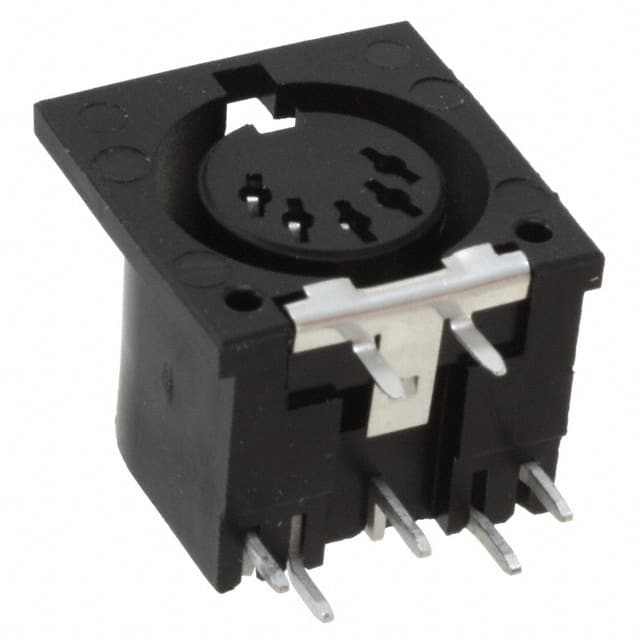

The TE Connectivity 5211450-1 is a shielded circular DIN receptacle designed for wire-to-board and wire-to-panel applications. It features a 5-position socket (female) contact arrangement with a keyed orientation for proper mating.
Electrical ratings include a current rating of 7.5A and a voltage rating of 250VAC. The contacts are tin-plated brass with a tuning fork design. The housing is made of nylon with UL94 V-0 flammability rating, and the shell is polyamide (PA), nylon, glass filled. Shielding is provided with a brass shield material.
The connector mounts via through-hole, right-angle orientation with solder termination. It features a kinked leg for PCB retention and includes a self-tapping screw for panel mount retention. The tail length is 3.56mm and recommended PCB thickness is 2.36mm. Operating temperature range is -55°C to 105°C.
The component is RoHS compliant and lead-free wave solder capable. It has a moisture sensitivity level of 1 (unlimited).
5 positions.
7.5 A.
250 VAC.
Through hole, right angle with solder termination.
Yes, it is shielded with a brass shield.
-55°C to 105°C.
Tin.
