| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100,800 pcs
|
100800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Halogen Free | |
| Insulation | |
| Lead Style | |
| Mounting Type | |
| SVHC Present | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Wire Gauge |

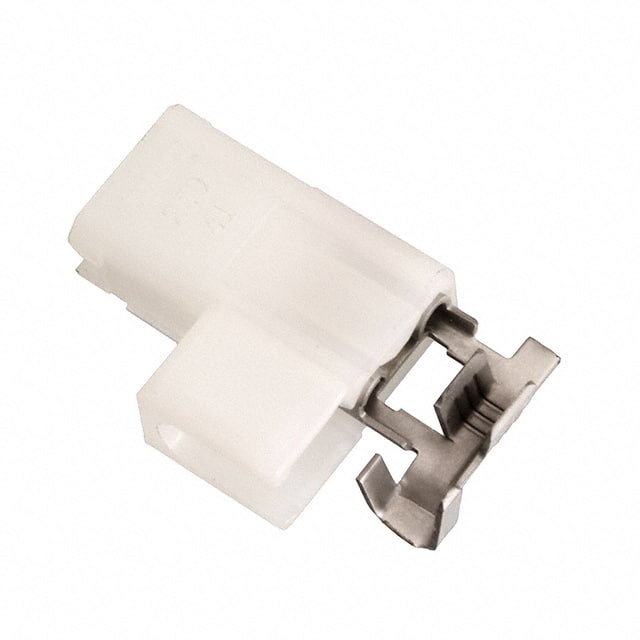

The 520971-2 is a female quick disconnect terminal from TE Connectivity's ULTRA-POD 250 series. It features a 0.250" (6.35mm) tab width and accepts 14-18 AWG wire via a crimp termination. The terminal has a right angle flag design for space-constrained applications, with a free hanging (in-line) mounting style. It is fully insulated for electrical safety and comes in a natural color. The contact is made of brass with a tin finish for reliable conductivity and corrosion resistance.
This component meets RoHS3 and REACH compliance, and does not contain REACH SVHC. It is halogen-free by BFR/CFR/PVC standard but contains bromine/chlorine above 900 ppm. Suitable for wire harness assembly and quick-disconnect applications in appliances, automotive, and industrial equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.46 | $0.46 |
| 10+ | $0.39 | $0.39 |
| 25+ | $0.37 | $0.37 |
| 50+ | $0.35 | $0.35 |
| 100+ | $0.34 | $0.34 |
| 250+ | $0.31 | $0.31 |
| 500+ | $0.30 | $0.30 |
| 1,800+ | $0.27 | $0.27 |
| 3,600+ | $0.26 | $0.26 |
| 5,400+ | $0.25 | $0.25 |
| 9,000+ | $0.24 | $0.24 |
| 12,600+ | $0.24 | $0.24 |
| 18,000+ | $0.23 | $0.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Free hanging (in-line) and right angle mounting.
14-18 AWG.
Yes, it is fully insulated.
Brass contact with tin plating.
Yes, RoHS3 compliant per TE declaration.
No, it does not contain REACH SVHC.
Tab width is 0.250" (6.35mm) and thickness is 0.032" (0.81mm).
