| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Wire Gauge |

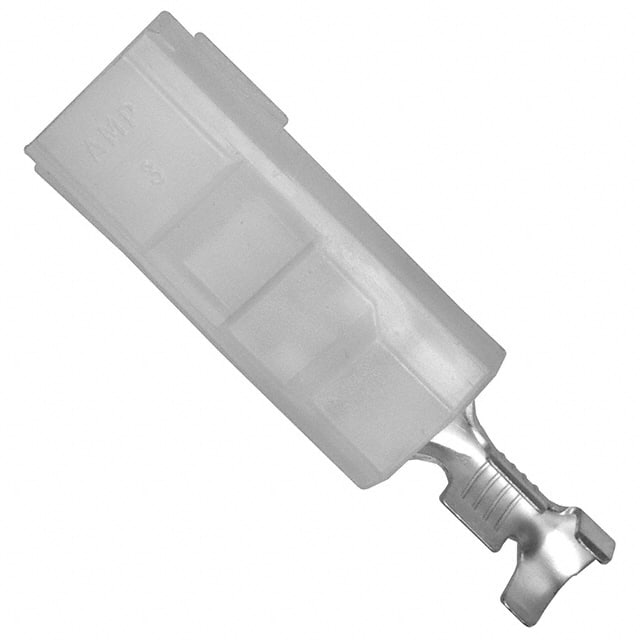

TE Connectivity 520963-2 is a fully insulated quick disconnect receptacle designed for wire sizes from 14 to 18 AWG. It accepts a male tab measuring 0.250" (6.35mm) wide by 0.032" (0.81mm) thick, making it suitable for standard 1/4-inch quick disconnect systems.
The female receptacle features a crimp termination and is mounted as a free-hanging, in-line connector. The brass contact is finished with tin, providing good conductivity and corrosion resistance. Overall length is 34.70mm (1.366").
This component is typically used in applications requiring reliable, separable connections, such as appliance wiring, automotive harnesses, and industrial equipment. The fully insulated design helps prevent accidental short circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.42 | $0.42 |
| 10+ | $0.37 | $0.37 |
| 25+ | $0.32 | $0.32 |
| 100+ | $0.29 | $0.29 |
| 250+ | $0.26 | $0.26 |
| 1,000+ | $0.21 | $0.21 |
| 2,000+ | $0.20 | $0.20 |
| 6,000+ | $0.19 | $0.19 |
| 8,000+ | $0.18 | $0.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It accepts 14 to 18 AWG wire.
It fits a tab measuring 0.250" (6.35mm) wide by 0.032" (0.81mm) thick.
It is a free hanging (in-line) connector.
The termination is crimp style.
Yes, it is fully insulated.
The contact is brass with a tin finish.
