| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
39 pcs
|
39 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| China RoHS | |
| ELV | |
| Features | |
| For Use With | |
| Halogen Free | |
| Length | |
| Thread Size |

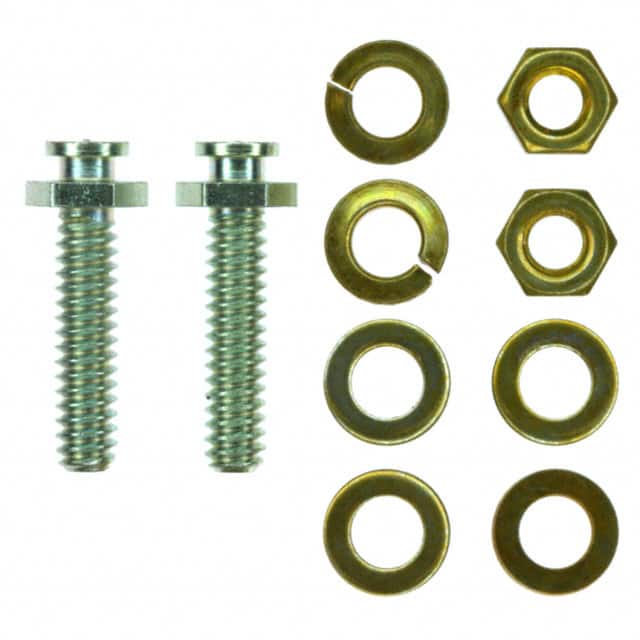

This slide lock bolt kit is a mechanical accessory designed for use with TE Connectivity AMPLIMITE series D-Sub connectors, specifically the HDE, HDF, and HDP families. It provides a secure locking mechanism for panel-mount applications, ensuring reliable connector retention.
The bolt features a 4-40 UNC thread size and measures 11.43mm (0.450 inches) in length. The kit includes all required hardware for installation. The part is RoHS compliant with exemptions (lead in steel under exemption 6(a)-I) and is classified as low halogen. It also meets EU ELV and China RoHS requirements, with REACH SVHC declared above threshold due to lead content.
As a slide lock bolt, it is intended for use in environments where vibration resistance and secure mating are critical. The hardware included simplifies assembly and reduces the need for additional components. This accessory is suitable for industrial, telecom, and data communication equipment utilizing standard D-Sub connectors.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.11 | $4.11 |
| 10+ | $3.50 | $3.50 |
| 25+ | $3.28 | $3.28 |
| 50+ | $3.12 | $3.12 |
| 100+ | $2.97 | $2.97 |
| 250+ | $2.78 | $2.78 |
| 500+ | $2.65 | $2.65 |
| 1,000+ | $2.52 | $2.52 |
| 2,500+ | $2.37 | $2.37 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The thread size is 4-40 UNC.
The length is 11.43mm (0.450 inches).
It is designed for use with AMPLIMITE Series HDE, HDF, and HDP D-Sub connectors.
Yes, hardware is included with the kit.
It is RoHS compliant with exemptions, specifically exemption 6(a)-I for lead in steel machining or galvanized steel.
REACH SVHC is above threshold due to lead content (0.35% in component part) per the JAN 2023 candidate list.
It is classified as low halogen: Br, Cl, F, I < 900 ppm per homogenous material, and BFR/CFR/PVC free.
