| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,872 pcs
|
1872 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Layout, Typical | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Columns | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Termination |

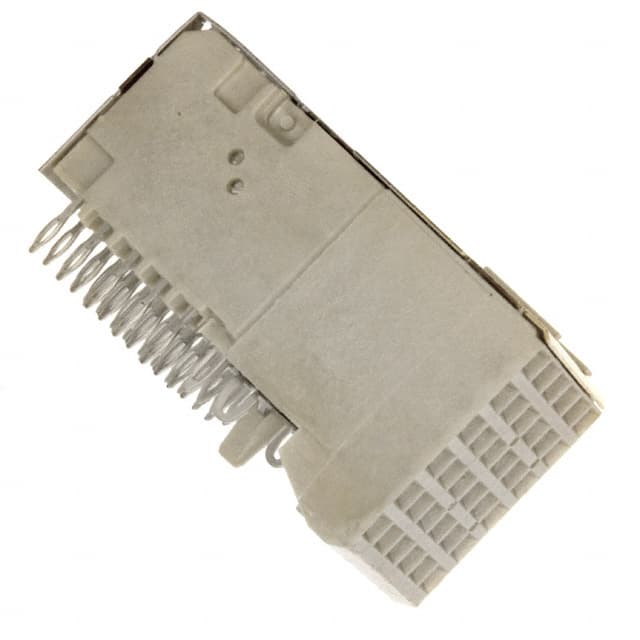

The 52057-102LF is a high speed receptacle from Amphenol ICC, part of the Metral series. It features 36 positions arranged in 5 rows with a 2.00mm pitch, offering a compact and high-density interconnect solution for backplane applications.
This connector supports a 30 signal, 6 ground contact layout. It is designed for board edge mounting with a right angle orientation and uses a press-fit termination method for reliable, solderless PCB attachment. The contacts are finished with 30.0µin gold for robust signal integrity.
Mechanical features include an integrated board guide and shielding to protect against electromagnetic interference. The connector body is natural in color and is RoHS3 compliant, with an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $12.77 | $12.77 |
| 10+ | $10.85 | $10.85 |
| 48+ | $9.72 | $9.72 |
| 96+ | $9.25 | $9.25 |
| 144+ | $8.99 | $8.99 |
| 288+ | $8.56 | $8.56 |
| 528+ | $8.20 | $8.20 |
| 1,008+ | $7.84 | $7.84 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
36 positions, all loaded.
2.00mm (0.079in).
Board edge, through hole, right angle with press-fit termination.
RoHS3 compliant (unverified).
Gold, 30.0µin (0.76µm).
Yes, shielded with a board guide.
