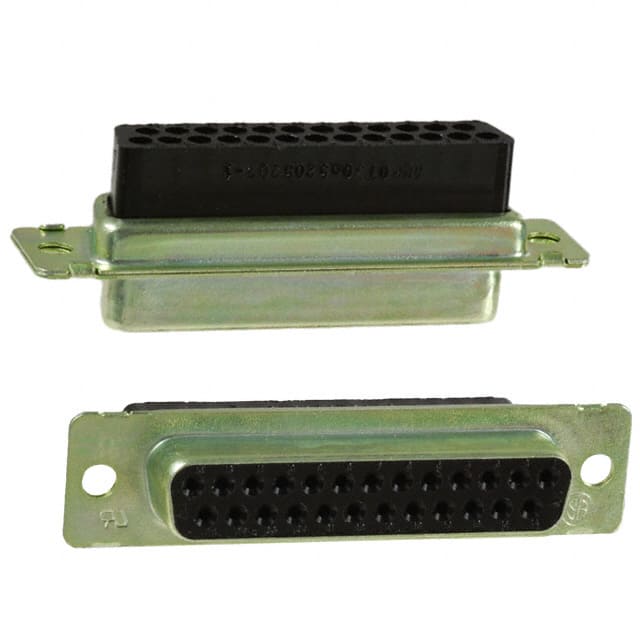

5205207-1 D-Sub receptacle housing for female contacts with 25 positions and 2 rows. Free hanging (in-line) mounting with unthreaded flange.
Mfr Part #:

5205207-1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
D-Sub receptacle housing for female contacts with 25 positions and 2 rows. Free hanging (in-line) mounting with unthreaded flange.
✓ Total Stock: 1 pcs
$ Price Range: $1.66 - $2.53

5205207-1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5205207-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Style
Connector Type
Contact Type
Flange Feature
Mounting Type
Number of Positions
Number of Rows
Shell Finish Thickness
Shell Material, Finish
Shell Size, Connector Layout
View Similar Products (0)

5205207-1 Description

Short technical summary and product information.

This D-Sub receptacle housing from TE Connectivity is designed for use with female contacts in signal applications. It features 25 positions arranged in 2 rows, making it suitable for a variety of data and control interfaces. The housing is free hanging (in-line) style, allowing for flexible cable assembly without the need for panel mounting.



The shell is constructed from steel with a yellow chromate plated zinc finish, providing corrosion resistance and durability. The shell size is 3 (DB, B) with a standard D-Sub footprint. The flange feature is housing/shell unthreaded, simplifying installation in applications where a threaded locking mechanism is not required. Shell finish thickness is 200 microinches (5.08 micrometers).



This product is a housing only; contacts are sold separately. It is commonly used in computer peripherals, industrial equipment, and communication devices where a reliable D-Sub connection is needed.

5205207-1 Quick Information

Product Type: D-Sub Connector Housing
Canonical Name: D-Sub Receptacle Housing for Female Contacts, 25 Positions, 2 Rows, Free Hanging
Subcategory: Receptacle Housing

5205207-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5205207-1 Estimated Pricing

Qty Low High
1+ $2.53 $2.53
10+ $2.44 $2.44
25+ $2.19 $2.19
100+ $2.07 $2.07
250+ $1.82 $1.82
400+ $1.74 $1.74
1,200+ $1.66 $1.66

Estimated market price range - modelled values for guidance only, not live distributor offers.

5205207-1 Features

  • 25-position D-Sub receptacle housing design.
  • 2-row contact arrangement for signal connections.
  • Free hanging in-line mounting style.
  • Steel shell with yellow chromate plated zinc finish.
  • 200 microinches shell finish thickness.

5205207-1 Applications

  • Used in data communication equipment.
  • Suitable for industrial control systems.
  • Ideal for computer peripheral connections.
  • Applied in test and measurement devices.
  • Integrates into cable assemblies.

5205207-1 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the number of positions of the 5205207-1?

25 positions.

What is the mounting type of the 5205207-1?

Free hanging (in-line) mounting.

What is the connector style of the 5205207-1?

D-Sub.

What is the shell size and layout of the 5205207-1?

Shell size 3 (DB, B).

What is the shell material and finish of the 5205207-1?

Steel, yellow chromate plated zinc.
