| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
145 pcs
|
145 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accomodates a Fuse | |
| Approval Agency | |
| Climatic Category | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Dielectric Strength (Minimum @ Between L-N) | |
| Dielectric Strength (Minimum @ Between L/N-PE) | |
| Filter Type | |
| Fuse Accommodation | |
| Fuse Holder Type | |
| Fuse Holder, Drawer | |
| Ingress Protection | |
| Lead Style | |
| Leakage Current | |
| MTBF | |
| Material Flammability Rating | |
| Medical Grade | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature Range | |
| Panel Cutout Dimensions | |
| Panel Thickness | |
| Power Acceptance | |
| Protection Class | |
| Termination | |
| Termination Style | |
| Voltage Rating |

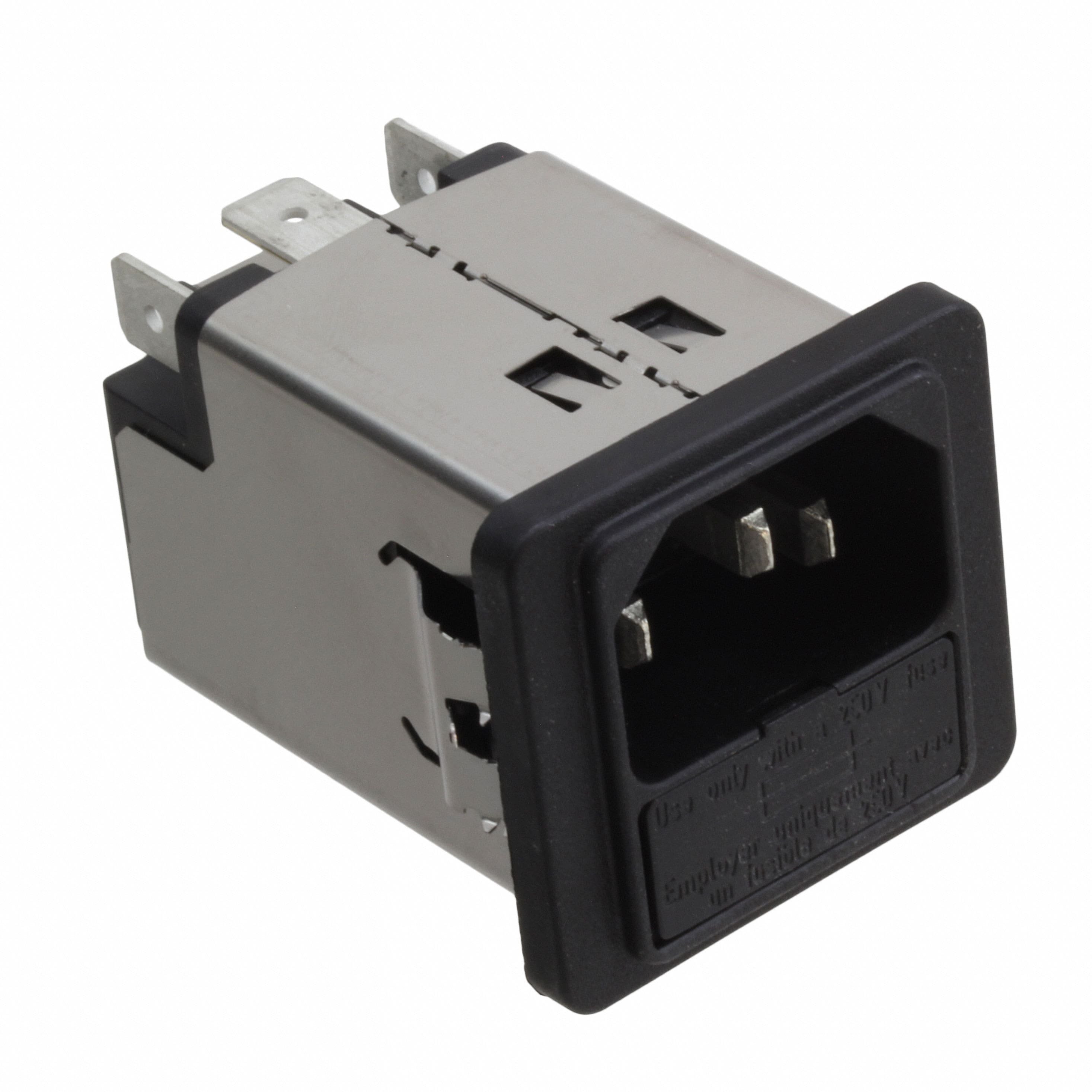

The Schurter 5200.0843.1 is a compact power entry module that integrates an IEC 320-C14 appliance inlet, an EMI/RFI line filter, and a 1-pole fuse holder into a single unit. It is rated for 8A continuous current at 250VAC (50/60 Hz) and is designed for panel mount snap-in installation on panels with thickness from 0.79mm to 3.00mm. The module features quick connect terminals (6.3x0.8mm) for easy wiring.
The integrated filter provides effective attenuation of electromagnetic interference, with a maximum leakage current of less than 0.5 mA at 250V/60Hz. Dielectric strength exceeds 1.7 kVDC between line and neutral, and 2.7 kVDC between line/neutral and protective earth. The operating temperature range is -25°C to 85°C, and the front side is rated IP40 for protection against solid objects.
This module is suitable for use in Class I equipment according to IEC 61140. The fuse holder accepts standard 5x20mm fuses (fuse not included). The housing material has a UL94 V-0 flammability rating. Approvals include cULus and ENEC. The module is RoHS compliant (unverified) and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $27.02 | $27.02 |
| 10+ | $22.96 | $22.96 |
| 30+ | $21.25 | $21.25 |
| 50+ | $20.50 | $20.50 |
| 100+ | $19.52 | $19.52 |
| 250+ | $18.30 | $18.30 |
| 500+ | $17.43 | $17.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 8 A at 250 VAC (50/60 Hz).
The voltage rating is 250 VAC.
It uses panel mount, snap-in mounting.
The connector has 3 positions (IEC C14 inlet, fuse holder, and line/neutral/earth).
The module accommodates a fuse but the fuse is not included. It accepts standard 5x20 mm fuse-links.
It has an integrated EMI/RFI line filter (commercial grade).
The maximum leakage current is less than 0.5 mA at 250 V / 60 Hz.
