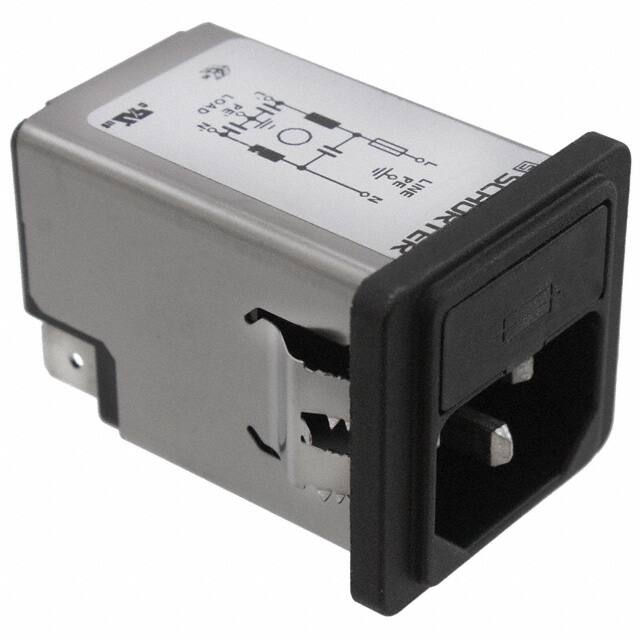

5200.0643.1 Schurter 5200.0643.1 is an IEC 320-C14 power entry module with EMI/RFI filter and 1-pole fuseholder for 5x20 mm fuses. Rated 6A at 250VAC, panel snap-in mount with quick connect terminals.
Mfr Part #:

5200.0643.1

Available from 1 distributors
Mfr Name: Schurter Inc.
Schurter Inc.
Schurter 5200.0643.1 is an IEC 320-C14 power entry module with EMI/RFI filter and 1-pole fuseholder for 5x20 mm fuses. Rated 6A at 250VAC, panel snap-in mount with quick connect terminals.
✓ Total Stock: 6 pcs
$ Price Range: $16.63 - $25.78

5200.0643.1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
6 pcs
On Request
6 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5200.0643.1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accomodates a Fuse
Approval Agency
Connector Style
Connector Type
Current Rating
Filter Type
Fuse Holder, Drawer
Industrial Grade
Ingress Protection
Lead Style
Material Flammability Rating
Medical Grade
Mounting Type
Number of Positions
Operating Temperature Range
Panel Cutout Dimensions
Panel Thickness
Termination
Termination Style
Voltage Rating
View Similar Products (0)

5200.0643.1 Description

Short technical summary and product information.

The Schurter 5200.0643.1 is a filtered power entry module in the 5200 series, combining an IEC 320-C14 inlet, a 1-pole Shocksafe PC2 fuseholder for 5x20 mm fuses, and a commercial-grade EMI/RFI line filter in a compact unit.



Electrical ratings: 6A at 250VAC (IEC and UL/CSA). Leakage current is less than 0.5 mA in the standard version. Dielectric strength exceeds 1.7 kVDC between line and neutral, and 2.7 kVDC between line/neutral and protective earth.



Mechanical features include panel snap-in mounting for panel thickness 0.79 to 3.00 mm, or screw-on mounting up to 8 mm. Terminals are quick connect 6.3 x 0.8 mm. The housing is rated IP40 front side and uses UL94 V-0 flame-rated material. V-Lock notch is standard for cord retention.

5200.0643.1 Quick Information

Product Type: Power Entry Module
Series: 5200
Canonical Name: Schurter 5200.0643.1 IEC 320-C14 Power Entry Module with Filter, Fuseholder 1-pole
Subcategory: Filtered Power Entry Module

5200.0643.1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

5200.0643.1 Estimated Pricing

Qty Low High
1+ $25.78 $25.78
10+ $21.91 $21.91
30+ $20.28 $20.28
50+ $19.56 $19.56
100+ $18.63 $18.63
250+ $17.46 $17.46
500+ $16.63 $16.63

Estimated market price range - modelled values for guidance only, not live distributor offers.

5200.0643.1 Features

  • IEC 320-C14 inlet with EMI/RFI filter.
  • Integrated 1-pole fuseholder for 5x20 mm fuses.
  • Rated 6A at 250VAC, commercial filter version.
  • Panel mount snap-in or screw-on installation.
  • Quick connect terminals 6.3 mm x 0.8 mm.

5200.0643.1 Applications

  • Power entry for industrial equipment and appliances.
  • EMI/RFI filtering for commercial electronic devices.
  • Where a fuseholder and line filter are needed in one package.
  • Class I protected equipment requiring a filtered inlet.

5200.0643.1 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the current rating of the Schurter 5200.0643.1?

6 A at 250 VAC (IEC and UL/CSA).

Does this power entry module include a fuseholder?

Yes, it includes a 1-pole Shocksafe PC2 fuseholder for 5x20 mm fuses (fuse not included).

What is the mounting type and panel cutout?

Panel mount, snap-in or screw-on. Rectangular cutout 32.0 mm x 29.0 mm. Snap-in accepts 0.79 to 3.00 mm panel thickness; screw-on up to 8 mm.

What is the operating temperature range?

-25°C to 85°C.

What approvals does this part have?

cULus and ENEC approved.
