| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accommodates a Fuse | |
| Accomodates a Fuse | |
| Approval Agency | |
| Climatic Category | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Dielectric Strength (Minimum @ 2 sec) | |
| Filter Type | |
| Fuse Holder, Drawer | |
| Fuse Power Acceptance | |
| Ingress Protection | |
| Lead Style | |
| Leakage Current (Maximum @ 250 V / 60 Hz) | |
| MTBF | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Panel Cutout Dimensions | |
| Panel Thickness | |
| Protection Class | |
| Termination | |
| Termination Style | |
| Voltage Rating |

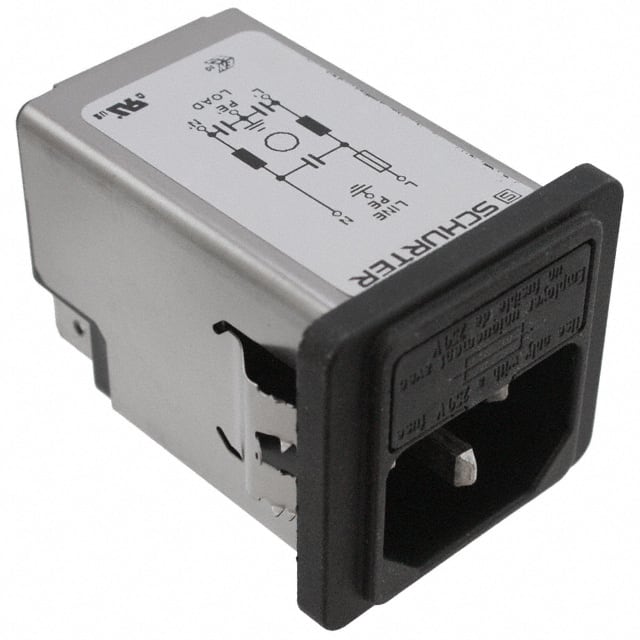

The Schurter 5200.0443.1 is a compact power entry module combining an IEC 320-C14 appliance inlet, a 1-pole fuseholder for 5x20mm fuses, and a commercial-grade EMI/RFI line filter in a single unit. It is rated for 4A at 250VAC and designed for panel mount snap-in installation from the front side. The module uses quick connect terminals (0.250" / 6.3mm) and accommodates panel thicknesses from 0.79mm to 3.00mm with a rectangular cutout of 32.00mm x 29.00mm.
The integrated filter provides standard leakage current below 0.5mA at 250V/60Hz and dielectric strength greater than 1.7kVDC between line and neutral, and greater than 2.7kVDC between line/neutral and ground. The module is rated IP40 on the front side and operates over -25°C to 85°C. It carries cULus and ENEC approvals, with a flammability rating of UL94 V-0. The V-Lock notch is standard for secure cord retention.
| Qty | Low | High |
|---|---|---|
| 1+ | $27.02 | $27.02 |
| 10+ | $22.97 | $22.97 |
| 30+ | $21.25 | $21.25 |
| 50+ | $20.50 | $20.50 |
| 100+ | $19.52 | $19.52 |
| 250+ | $18.30 | $18.30 |
| 500+ | $17.43 | $17.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 A at 250 VAC.
250 VAC.
Panel mount, snap-in.
It accommodates a fuse (5x20mm, 1-pole) but the fuse is not included.
-25 °C to 85 °C.
cULus and ENEC.
Standard version: <0.5 mA at 250 V/60 Hz. Medical version (M80): <5 µA.
