| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | 1970-01-01 00:36:50 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accommodates a Fuse | |
| Accomodates a Fuse | |
| Approval Agency | |
| Climatic Category | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Filter Type | |
| Fuse Holder | |
| Fuse Holder, Drawer | |
| Fuse Type | |
| Fuseholder Category | |
| Ingress Protection | |
| Lead Style | |
| Leakage Current (Standard) | |
| MTBF | |
| Material | |
| Material Flammability Rating | |
| Medical Grade | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature Range | |
| Panel Cutout Dimensions | |
| Panel Thickness | |
| Panel Thickness (Snap-in) | |
| Pin Temperature | |
| Power Acceptance (Fuse Holder) | |
| Protection Class | |
| Termination | |
| Termination Style | |
| Voltage Rating | |
| current_rating (Nominal @ @ Ta 40 °C / 250 VAC; 50 Hz) | |
| current_rating (Nominal @ @ Ta 40 °C / 250 VAC; 60 Hz) | |
| dielectric_strength (Minimum @ Test voltage 2 sec) |

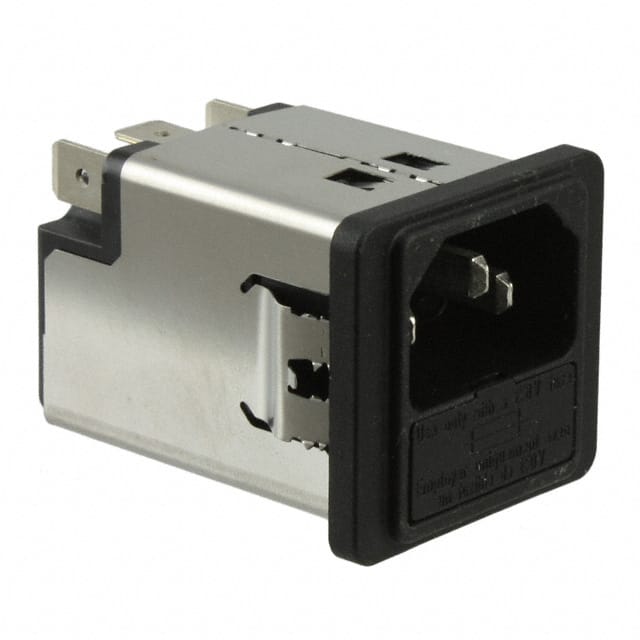

The Schurter 5200.0243.1 is a compact power entry module from the 5200 series, combining an IEC 320-C14 appliance inlet, a 1-pole fuseholder for 5x20mm fuses, and an EMI/RFI line filter in a single unit. It is rated for 2A at 250VAC (40°C) and features a commercial-grade filter with leakage current below 0.5mA at 250VAC/60Hz.
This module is designed for panel mount snap-in installation and accepts panel thicknesses from 0.79mm to 3.00mm. Termination is via quick connect terminals sized 6.3mm x 0.8mm. The front side is rated IP40 for protection against solid objects larger than 1mm. The housing is made of black thermoplastic with UL94 V-0 flammability rating.
The module includes a V-Lock notch for secure cord retention and is suitable for Class I equipment per IEC 61140. It operates over a temperature range of -25°C to 85°C and has a high MTBF of over 2,300,000 hours. The filter is potted for high resistance and uses a stainless steel case.
| Qty | Low | High |
|---|---|---|
| 1+ | $27.02 | $27.02 |
| 10+ | $22.96 | $22.96 |
| 30+ | $21.25 | $21.25 |
| 50+ | $20.50 | $20.50 |
| 100+ | $19.52 | $19.52 |
| 250+ | $18.30 | $18.30 |
| 500+ | $17.43 | $17.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 2A at 250VAC (40°C).
250 VAC.
Panel mount, snap-in.
It accommodates a fuse (5x20mm) but the fuse is not included.
-25°C to 85°C.
IP40 on the front side.
cULus and ENEC approved.
