| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Layout, Typical | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Termination |

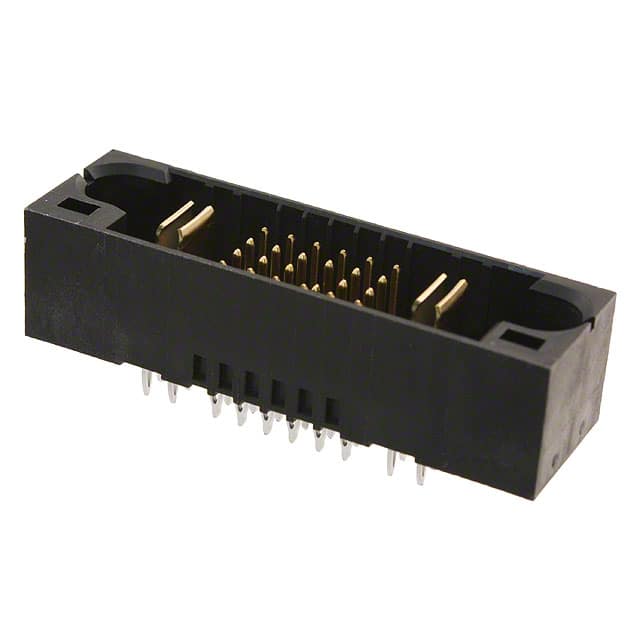

The Amphenol ICC 51952-002LF is a blade power connector header designed for backplane and power distribution applications. It features 26 positions arranged in 4 rows with a 2.54mm pitch, providing a compact yet robust interconnect solution.
This connector uses a press-fit termination for reliable solderless assembly and includes a mating guide for alignment during connection. The contact layout is configured as 24 signal contacts and 2 power contacts, supporting mixed-signal and power delivery in a single housing.
The header is housed in a black insulator and the contacts are finished with gold or Gold GXT™ plating (30.0µin thickness) for corrosion resistance and reliable electrical performance. It is RoHS3 compliant and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $18.86 | $18.86 |
| 10+ | $16.03 | $16.03 |
| 25+ | $15.03 | $15.03 |
| 40+ | $11.28 | $11.28 |
| 50+ | $14.31 | $14.31 |
| 70+ | $11.06 | $11.06 |
| 132+ | $13.36 | $13.36 |
| 264+ | $12.73 | $12.73 |
| 528+ | $12.12 | $12.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 26 positions, all loaded, arranged in 4 rows with a 2.54mm pitch.
The pitch is 2.54mm (0.100 inches).
It uses through hole mounting with press-fit termination.
The contact finish is Gold or Gold GXT™ with a thickness of 30.0µin (0.76µm).
The contact layout is 24 signal contacts and 2 power contacts.
