| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
902 pcs
|
902 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
498 pcs
|
498 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Board Mount | |
| CompactPCI | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Contact Base Material | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Plating (Mating Area) | |
| Contact Style | |
| Crosstalk Version | |
| Feedthrough Post Length | |
| Housing Color | |
| Housing Material | |
| Interface Type | |
| Lead Spacing | |
| Lead Style | |
| Module Length | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Number of Signal Contacts | |
| PCB Mounting Orientation | |
| Pitch | |
| Rows Loaded | |
| Shielded | |
| Termination | |
| Termination End Plating | |
| Type |

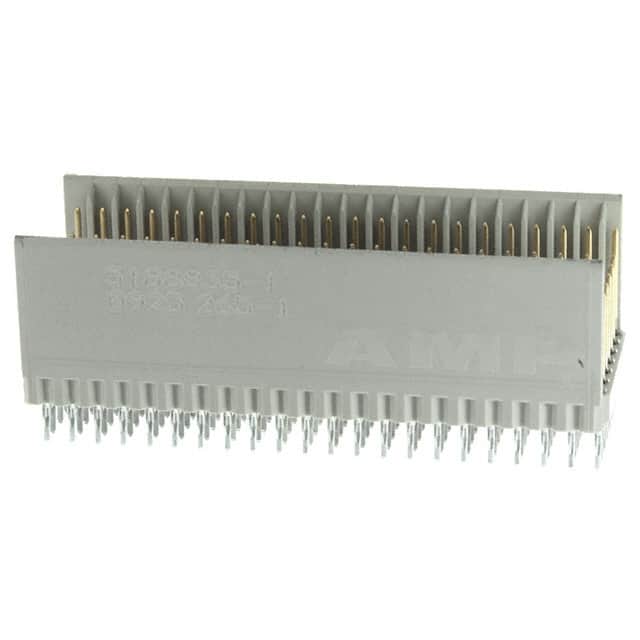

The TE Connectivity 5188835-1 is a Z-PACK 2mm Hard Metric (HM) Type B plug connector designed for backplane applications. It features 154 total positions comprising 110 signal contacts and 44 ground contacts arranged in 7 rows (5+2). The rows loaded are D, F, Z, C, B, A, E.
This connector uses a press-fit termination with short tail contacts for through hole mounting. The contact base material is phosphor bronze with a performance-based gold plating on the mating area and tin over nickel termination end plating. The housing is gray polyester GF with a module length of 44.00mm and a feedthrough post length of 3.70mm.
Designed for vertical PCB mounting, the 5188835-1 is a fixed board mount connector with standard crosstalk version. It is not shielded. The connector is compliant with RoHS and ELV requirements and is suitable for CompactPCI applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $13.76 | $13.76 |
| 11+ | $11.62 | $11.62 |
| 33+ | $10.75 | $10.75 |
| 55+ | $10.37 | $10.37 |
| 110+ | $9.87 | $9.87 |
| 253+ | $9.31 | $9.31 |
| 506+ | $8.87 | $8.87 |
| 1,001+ | $8.45 | $8.45 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a Type B, 22 column plug connector.
154 positions (110 signal + 44 ground).
Through hole with press-fit termination.
Yes, it is always EU RoHS/ELV compliant.
2.00mm (0.079 inches).
Gray polyester GF (glass-filled).
