| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
300 pcs
|
300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Contact Finish | |
| Contact Finish Thickness | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Termination | |
| Termination Style |

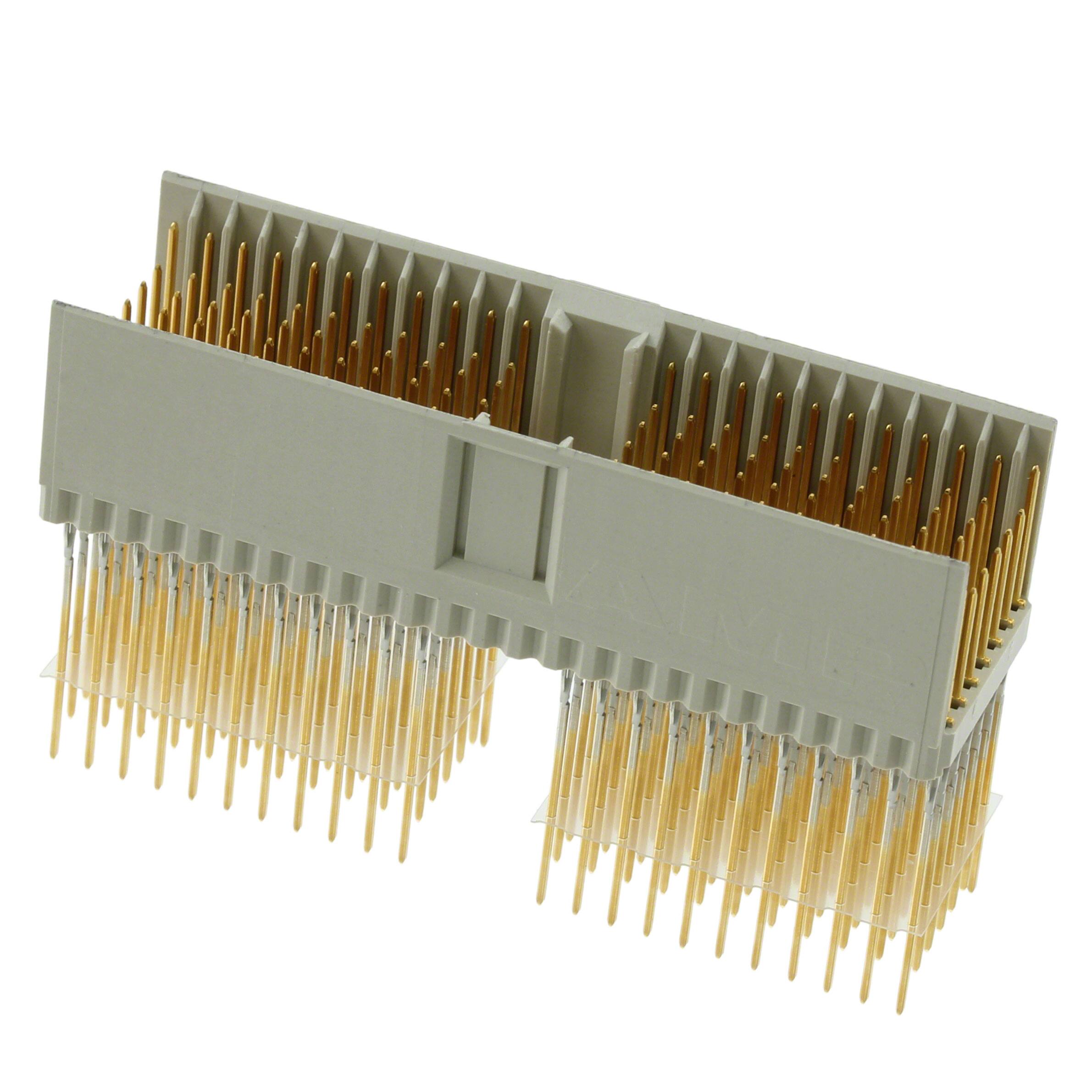

This 5188578-1 from TE Connectivity is a CompactPCI P4 backplane header connector. It has 154 total positions configured as 110 signal contacts and 44 ground contacts arranged in a 5 + 2 row format. The connector uses a 2.00mm pitch and features press-fit termination for reliable, solderless mounting through a through-hole PCB.
The header is designed for the CompactPCI P4 connector style A 22, making it suitable for backplane interconnect applications in telecommunications, industrial computing, and instrumentation. Contacts are finished with 30.0 µin (0.76 µm) gold plating for corrosion resistance and reliable signal integrity. All positions are loaded.
This connector is mounted via through-hole press-fit technique, eliminating the need for soldering and reducing assembly time. The male pin header provides a robust connection for demanding environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $24.56 | $24.56 |
| 10+ | $20.87 | $20.87 |
| 30+ | $19.31 | $19.31 |
| 50+ | $18.63 | $18.63 |
| 100+ | $17.74 | $17.74 |
| 250+ | $16.63 | $16.63 |
| 500+ | $15.84 | $15.84 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Header, Male Pins, style A 22, used for CompactPCI P4.
154 positions total: 110 signal plus 44 ground contacts. All positions loaded.
2.00mm pitch with a 5 + 2 row format.
Press-fit termination, through-hole mounting.
Gold finish, 0.76 µm (30.0 µin) thickness.
