| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
400 pcs
|
400 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Back Shell Style | |
| Cable Opening | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish - Mating | |
| Contact Size | |
| Contact Style | |
| Fastening Type | |
| Features | |
| Grommet Code - Cable O.D. Range | |
| Ingress Protection | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Material | |
| Shielding | |
| Termination | |
| Termination Style | |
| Voltage Rating |

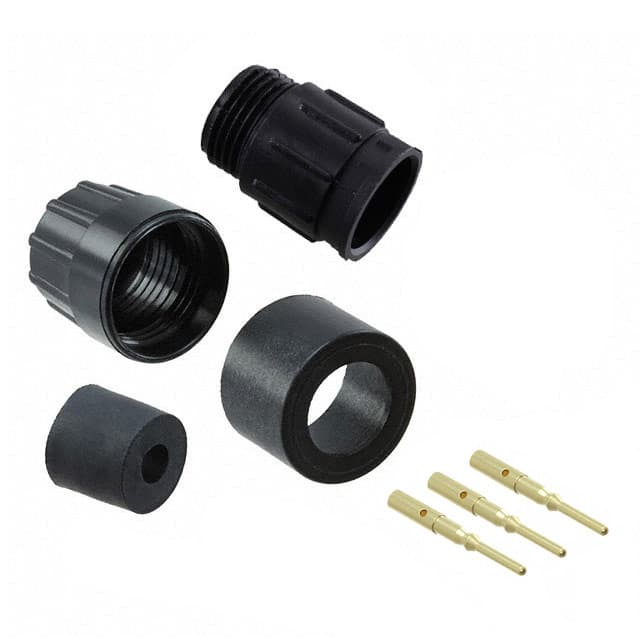

The Conxall/Switchcraft 5180-3PG-324 is a 3-position male circular connector receptacle from the Multi-Con-X series. It features gold over nickel plated contacts and a crimp termination style, designed for field installation. The connector has a bayonet lock fastening system and is keyed for proper orientation. It is constructed with a black nylon shell and includes a backshell for cable strain relief.
This connector is rated for 600V and operates over a temperature range of -40°C to 115°C. It provides weathertight ingress protection, making it suitable for outdoor or harsh environment applications. The cable opening accommodates a range of 0.240 to 0.270 inches (6.10 to 6.86 mm).
The connector is unshielded and uses #16 size contacts. It is supplied loose with crimp contacts that must be installed. The standard plating is gold over nickel, ensuring reliable conductivity and corrosion resistance.
| Qty | Low | High |
|---|---|---|
| 100+ | $9.10 | $9.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions.
600V.
Free Hanging (In-Line).
Receptacle, Male Pins.
Crimp.
Weathertight.
-40°C to 115°C.
