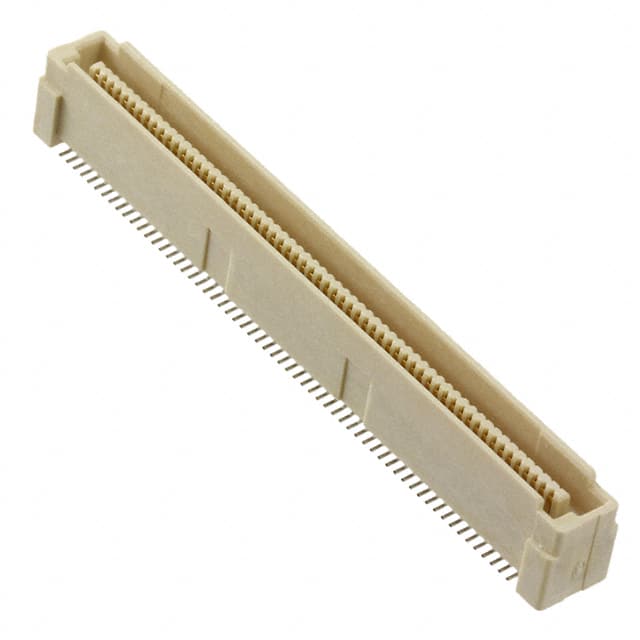

5179031-5 TE Connectivity 5179031-5 is a 120-position plug connector with center strip contacts, 0.80mm pitch, and surface mount termination.
Mfr Part #:

5179031-5

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 5179031-5 is a 120-position plug connector with center strip contacts, 0.80mm pitch, and surface mount termination.
✓ Total Stock: 184 pcs
$ Price Range: $5.07 - $6.69

5179031-5 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
184 pcs
On Request
184 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5179031-5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Features
Height Above Board
Lead Spacing
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Pitch
SVHC Present
Tape & Reel
View Similar Products (0)

5179031-5 Description

Short technical summary and product information.

The TE Connectivity 5179031-5 is a 120-position plug connector designed for board-to-board and mezzanine applications. It features a 0.80mm pitch and a dual-row configuration with center strip contacts, providing a compact and reliable interconnection solution.



This connector is surface mount compatible and has a height above board of 0.299 inches (7.60mm). It supports mated stacking heights of 8mm, 12mm, 16mm, and 20mm, offering flexibility in system design. The contacts are finished with 8.00 microinches of gold for reliable signal integrity.



The connector includes a board guide feature to assist with alignment during assembly. It is rated with an MSL of 1 (unlimited) and is listed as RoHS3 and REACH compliant.

5179031-5 Quick Information

Product Type: Board-to-Board Connector
Canonical Name: TE Connectivity 5179031-5 120 Position Plug Connector, Surface Mount
Subcategory: Mezzanine Connector

5179031-5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5179031-5 Estimated Pricing

Qty Low High
1+ $6.69 $6.69
9+ $5.93 $5.93
27+ $5.79 $5.79
54+ $5.64 $5.64
108+ $5.49 $5.49
252+ $5.24 $5.24
504+ $5.08 $5.08
1,008+ $5.07 $5.07

Estimated market price range - modelled values for guidance only, not live distributor offers.

5179031-5 Features

  • 120 positions with 0.80mm pitch.
  • Surface mount plug connector.
  • Gold contact finish for reliability.
  • Supports 8mm to 20mm stacking heights.
  • Includes board guide for alignment.

5179031-5 Applications

  • Used in mezzanine board-to-board connections.
  • Suitable for compact electronic assemblies.
  • Ideal for high-density interconnect designs.

5179031-5 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the 5179031-5 have?

The 5179031-5 has 120 positions.

What is the pitch of the 5179031-5 connector?

The pitch is 0.80mm.

What is the mounting type for this connector?

The mounting type is Surface Mount.

What contact finish does the 5179031-5 use?

The contact finish is Gold with a thickness of 8.00 microinches.

What stacking heights does this connector support?

It supports mated stacking heights of 8mm, 12mm, 16mm, and 20mm.
