| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,826 pcs
|
1826 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Packaging Type | |
| Pitch |

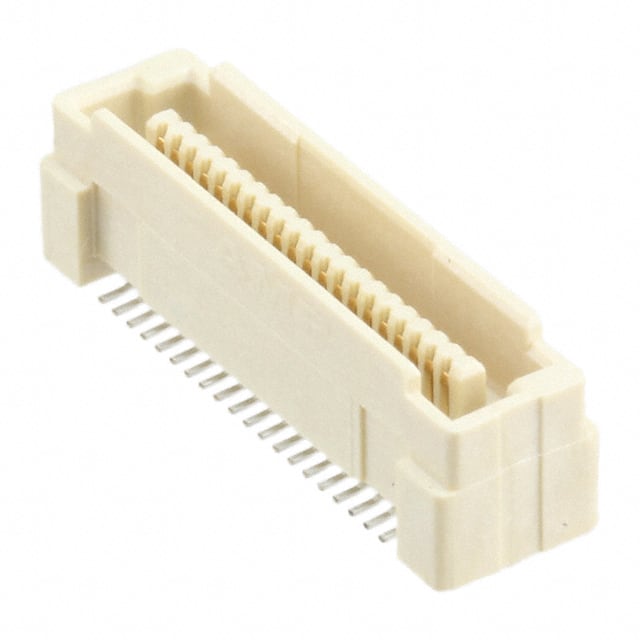

The TE Connectivity 5179030-1 is a 40 position, 2 row, 0.80mm pitch plug connector featuring center strip contacts. It is designed for board-to-board stacking applications with mated stacking heights of 7mm, 11mm, 15mm, and 19mm. The connector has a height above board of 6.60mm.
The housing is made of LCP (Liquid Crystal Polymer) rated UL94V-0, natural color. Contacts are brass with gold finish in the contact area and matte-tin on the soldering area. The connector includes a board guide feature for alignment during assembly.
This connector is surface mount and comes in tube packaging. It is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $2.78 | $2.78 |
| 10+ | $2.37 | $2.37 |
| 25+ | $2.22 | $2.22 |
| 50+ | $2.11 | $2.11 |
| 100+ | $2.01 | $2.01 |
| 250+ | $1.88 | $1.88 |
| 500+ | $1.79 | $1.79 |
| 1,000+ | $1.78 | $1.78 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 40 positions arranged in 2 rows.
The pitch is 0.80mm.
Surface mount.
7mm, 11mm, 15mm, and 19mm.
Gold finish on the contact area.
Yes, it includes a board guide feature.
