| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
700 pcs
|
700 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

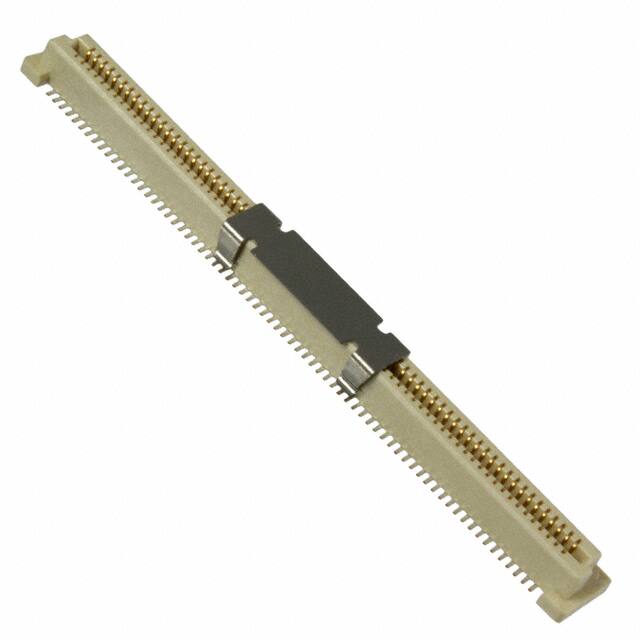

The TE Connectivity 5177985-6 is a 140-position receptacle connector featuring outer shroud contacts. It has a 0.8mm pitch and a 2-row configuration, designed for surface mount termination. The contacts are finished with gold (0.203µm thickness) for reliable electrical performance.
This connector includes a board guide feature to assist with alignment during assembly. It supports mated stacking heights of 5mm, 6mm, 7mm, and 8mm, making it suitable for mezzanine board-to-board applications where variable spacing is required.
The component is packaged for surface mount technology and is RoHS3 compliant. It is categorized under Arrays, Edge Type, Mezzanine (Board to Board) connectors, ideal for high-density interconnects in compact electronic assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $13.46 | $13.46 |
| 10+ | $11.44 | $11.44 |
| 25+ | $10.72 | $10.72 |
| 50+ | $10.21 | $10.21 |
| 100+ | $9.73 | $9.73 |
| 250+ | $9.72 | $9.72 |
| 700+ | $8.48 | $8.48 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 140 positions.
The pitch is 0.80mm (0.031 inches).
Surface mount.
Gold with a thickness of 0.203µm (8.00µin).
5mm, 6mm, 7mm, and 8mm.
2 rows.
Yes, it includes a board guide feature.
