| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,500 pcs
|
10500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

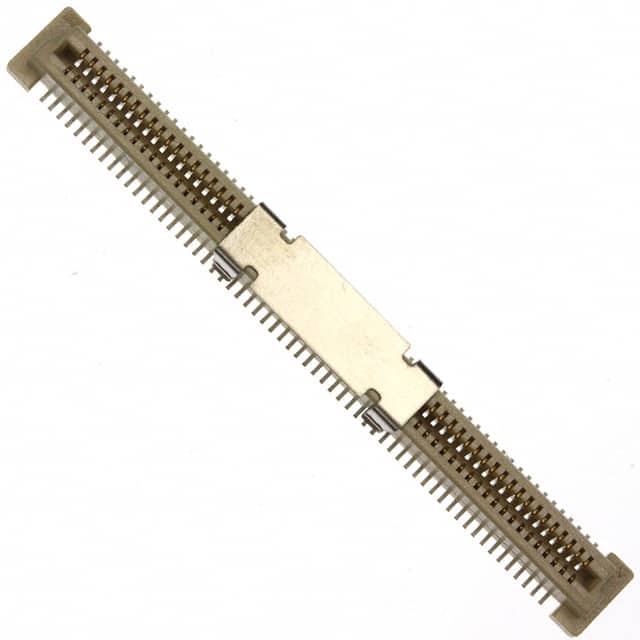

The TE Connectivity 5177985-5 is a 120-position receptacle connector with outer shroud contacts, designed for board-to-board mezzanine applications. It features a 0.8mm pitch and 2 rows of contacts, providing a compact and high-density interconnect solution.
This connector is surface mountable and includes a board guide feature for accurate alignment during assembly. The contacts are finished with 8µin gold plating, ensuring reliable electrical performance and durability over multiple mating cycles.
Designed for stacking heights of 5mm, 6mm, 7mm, or 8mm, this connector is suitable for various mezzanine board configurations. It is RoHS3 compliant and unaffected by REACH, meeting current environmental standards.
The connector is available in tape and reel packaging (DigiKey part numbers A99193TR-ND and A99193CT-ND) for automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.18 | $9.18 |
| 10+ | $7.80 | $7.80 |
| 25+ | $7.31 | $7.31 |
| 50+ | $6.96 | $6.96 |
| 100+ | $6.63 | $6.63 |
| 250+ | $6.40 | $6.40 |
| 700+ | $5.78 | $5.78 |
| 1,400+ | $5.50 | $5.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 120 positions.
The pitch is 0.80mm.
Surface mount.
5mm, 6mm, 7mm, and 8mm.
Gold contact finish with 8µin thickness.
Yes, it includes a board guide feature.
Yes, it is RoHS3 compliant.
