| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
167 pcs
|
167 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

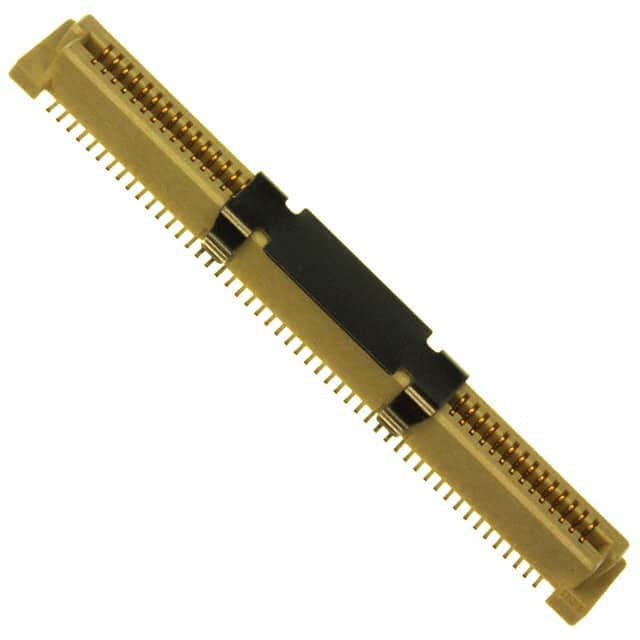

The TE Connectivity 5177985-4 is a 100 position receptacle connector featuring outer shroud contacts. It has a 0.80mm pitch and 2 rows of contacts. The connector is designed for surface mount mounting and supports mated stacking heights of 5mm, 6mm, 7mm, and 8mm. Contact finish is gold with a thickness of 8.00µin (0.203µm).
This connector includes a board guide feature for alignment during assembly. It is suitable for board-to-board mezzanine applications where a compact, high-density interconnect is required. The connector is RoHS3 compliant and has an MSL rating of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $7.07 | $7.07 |
| 10+ | $6.01 | $6.01 |
| 25+ | $5.63 | $5.63 |
| 50+ | $5.36 | $5.36 |
| 100+ | $5.11 | $5.11 |
| 250+ | $4.81 | $4.81 |
| 700+ | $4.45 | $4.45 |
| 1,400+ | $4.24 | $4.24 |
| 2,100+ | $4.12 | $4.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 0.80mm.
It has 100 positions.
Surface mount.
Gold with a thickness of 8.00µin (0.203µm).
5mm, 6mm, 7mm, and 8mm.
Yes, it includes a board guide.
