| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,800 pcs
|
1800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel |

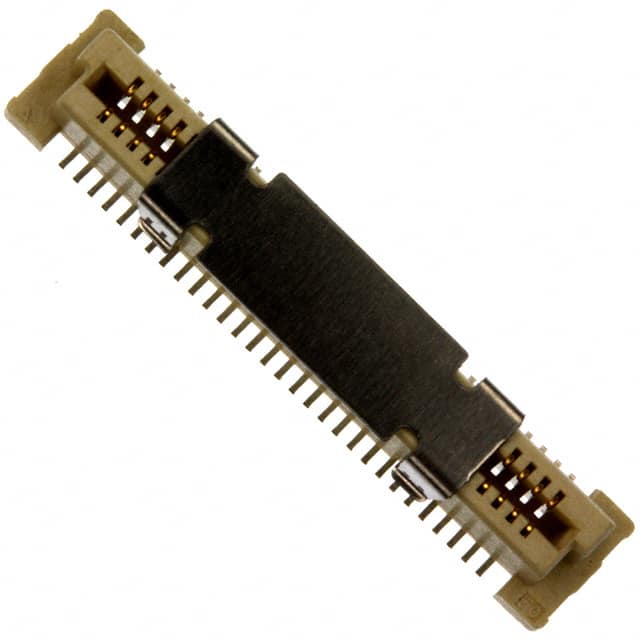

The TE Connectivity 5177985-2 is a 60-position receptacle connector with outer shroud contacts, designed for board-to-board mezzanine applications. It features a 0.80mm pitch and 2 rows, with surface mount termination for compact PCB designs. The contacts are finished with 8µin (0.203µm) gold for reliable conductivity and corrosion resistance. A board guide is included for alignment during mating. This connector supports mated stacking heights of 5mm, 6mm, 7mm, and 8mm, offering flexibility in system design. The component is RoHS3 compliant and has a moisture sensitivity level of 1 (unlimited floor life). It is available in tape and reel packaging via distributor part numbers A99190TR-ND (tape and reel) and A99190CT-ND (cut tape).
| Qty | Low | High |
|---|---|---|
| 1+ | $6.82 | $6.82 |
| 10+ | $5.79 | $5.79 |
| 25+ | $5.43 | $5.43 |
| 50+ | $5.17 | $5.17 |
| 100+ | $4.92 | $4.92 |
| 250+ | $4.62 | $4.62 |
| 1,000+ | $4.19 | $4.19 |
| 2,000+ | $3.99 | $3.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 60 positions arranged in 2 rows.
The pitch is 0.80mm (0.031 inches).
It uses surface mount (SMD) mounting.
The contact finish is gold with a thickness of 8µin (0.203µm).
Supported mated stacking heights are 5mm, 6mm, 7mm, and 8mm.
Yes, it includes a board guide for alignment.
It is a receptacle with outer shroud contacts.
