| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
13 pcs
|
13 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel |

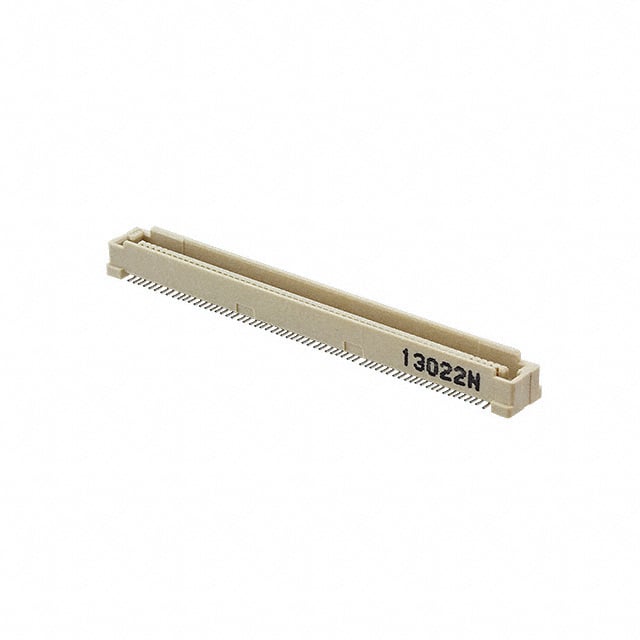

The TE Connectivity 5177984-5 is a 120-position plug connector designed for mezzanine board-to-board applications. It features a 0.8mm pitch and 2 rows of contacts, enabling high-density interconnections in compact electronic assemblies.
The connector is surface mount (SMD) for automated assembly and includes a board guide feature to aid alignment during mating. Contacts are finished with 8µin gold for reliable signal integrity. The mated stacking heights of 5mm, 9mm, 13mm, and 17mm provide flexibility in board spacing.
This connector is suitable for use in a variety of electronic devices requiring reliable board-to-board connections. The gold contact finish ensures durability and low contact resistance over multiple mating cycles.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.05 | $10.05 |
| 9+ | $9.19 | $9.19 |
| 27+ | $8.72 | $8.72 |
| 54+ | $8.50 | $8.50 |
| 108+ | $8.16 | $8.16 |
| 252+ | $7.41 | $7.41 |
| 504+ | $7.04 | $7.04 |
| 1,008+ | $6.88 | $6.88 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 120 positions arranged in 2 rows.
The pitch is 0.80mm (0.031 inches).
It is a surface mount (SMD) connector.
The contacts have a gold finish with a thickness of 8.00µin (0.203µm).
The mated stacking heights are 5mm, 9mm, 13mm, and 17mm.
Yes, it includes a board guide feature.
It is listed as RoHS3 compliant, but this status is unverified.
