| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
520 pcs
|
520 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

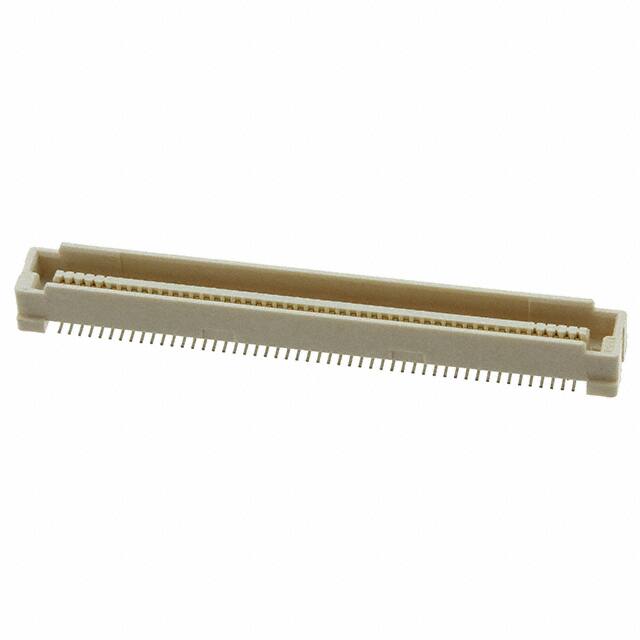

The TE Connectivity 5177984-4 is a 100-position mezzanine connector plug designed for board-to-board applications requiring a high-density, reliable interconnect. This connector features center strip contacts in a 2-row configuration with a 0.80mm (0.031 inch) pitch, allowing for compact designs.
The connector is surface mount (SMT) and has a height above board of 0.181 inches (4.60mm). It supports multiple mated stacking heights of 5mm, 9mm, 13mm, and 17mm, providing versatility for different board spacing requirements. The contacts are finished with 8.00 microinches (0.203µm) of gold, ensuring reliable conductivity and corrosion resistance.
A built-in board guide aids in proper alignment during assembly. This component is suitable for use in arrays and mezzanine board-to-board connections.
| Qty | Low | High |
|---|---|---|
| 3,000+ | $4.28 | $4.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 5177984-4 is a 100-position connector, arranged in 2 rows.
The pitch is 0.80mm (0.031 inches).
It is a surface mount (SMT) connector.
The connector supports mated stacking heights of 5mm, 9mm, 13mm, and 17mm.
The contacts have a gold finish with a thickness of 8.00µin (0.203µm).
Yes, the connector features a board guide for alignment.
