| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,700 pcs
|
2700 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
140 pcs
|
140 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Area Finish | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Halogen Rating | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Low Halogen | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Soldering Area Finish | |
| UL Flammability Rating |

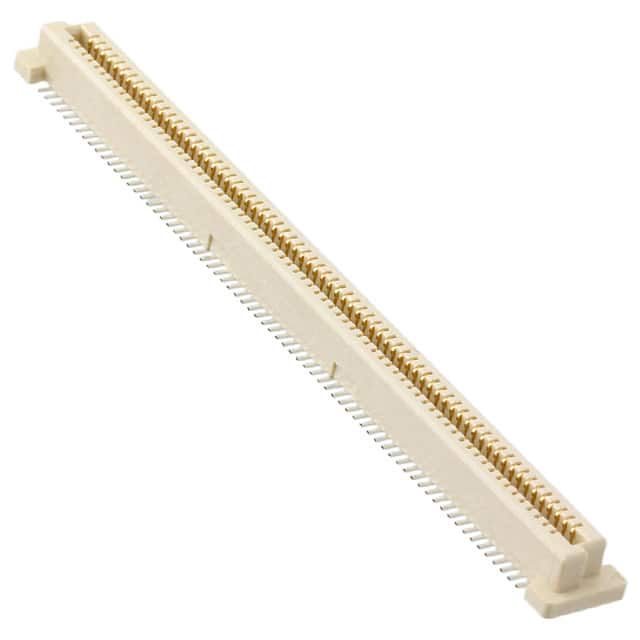

The TE Connectivity 5177983-6 is a high-density receptacle connector featuring 140 positions arranged in 2 rows with a 0.80mm pitch. This connector is part of the FH series and is designed for board-to-board mezzanine stacking applications. It supports mated stacking heights of 5mm, 6mm, 7mm, and 8mm, providing flexibility in system design.
The connector uses a Liquid Crystal Polymer (LCP) housing rated UL94V-0, with beryllium copper contacts that have a gold finish on the contact area (0.0002 min gold over 0.0013 min nickel) and matte tin on the soldering area. The housing is natural in color and includes a board guide feature for alignment during assembly.
This component is surface mount compatible and has a height above board of 3.75mm. It is rated as low halogen and is packaged in a tube. The connector is designed for use in applications requiring reliable, high-density interconnections in a compact form factor.
| Qty | Low | High |
|---|---|---|
| 1+ | $14.02 | $14.02 |
| 14+ | $11.64 | $11.64 |
| 28+ | $11.08 | $11.08 |
| 56+ | $10.55 | $10.55 |
| 105+ | $10.09 | $10.09 |
| 252+ | $9.49 | $9.49 |
| 504+ | $9.04 | $9.04 |
| 1,001+ | $8.61 | $8.61 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 140 positions arranged in 2 rows.
The pitch is 0.80mm.
It uses surface mount (SMD) mounting.
The contact area has a gold finish of 8.00µin (0.203µm) over nickel.
Supported mated stacking heights are 5mm, 6mm, 7mm, and 8mm.
The housing is made of LCP (High Temp Thermoplastic) rated UL94V-0, natural color.
RoHS status is listed as RoHS3 Compliant, but this is unverified and low confidence.
