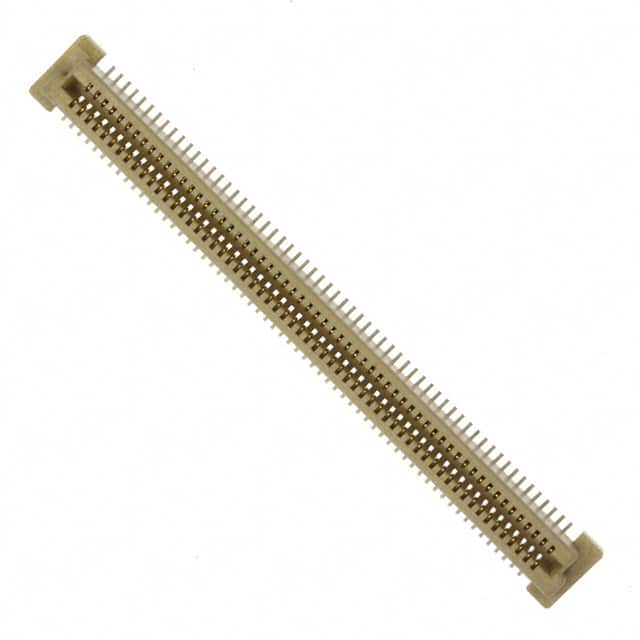

The TE Connectivity 5177983-5 is a high-density mezzanine board-to-board connector. It features 120 positions arranged in 2 rows with a 0.80mm pitch, making it suitable for compact electronic assemblies. The connector is a receptacle with outer shroud contacts, designed for surface mount soldering. The contact finish is gold with a thickness of 8.00µin (0.203µm), providing reliable electrical performance. The connector includes a board guide feature for alignment during assembly. It supports mated stacking heights of 5mm, 6mm, 7mm, and 8mm, offering flexibility in board spacing. The height above board is 3.75mm. This connector is appropriate for applications requiring high contact density in a small form factor, such as in telecommunications, computing, and industrial equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.71 | $8.71 |
| 9+ | $7.56 | $7.56 |
| 27+ | $7.43 | $7.43 |
| 54+ | $7.22 | $7.22 |
| 108+ | $6.71 | $6.71 |
| 252+ | $6.69 | $6.69 |
| 1,008+ | $6.55 | $6.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 120 positions.
The pitch is 0.80mm.
The mounting type is Surface Mount.
The contact finish is Gold with a thickness of 8.00µin.
The mated stacking heights are 5mm, 6mm, 7mm, and 8mm.
Yes, the connector features a board guide.
The connector is a Receptacle with Outer Shroud Contacts.
