| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,152 pcs
|
7152 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
284 pcs
|
284 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Plating (Mating Area) | |
| Features | |
| Flammability Rating | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Solder Area Plating | |
| Termination Style |

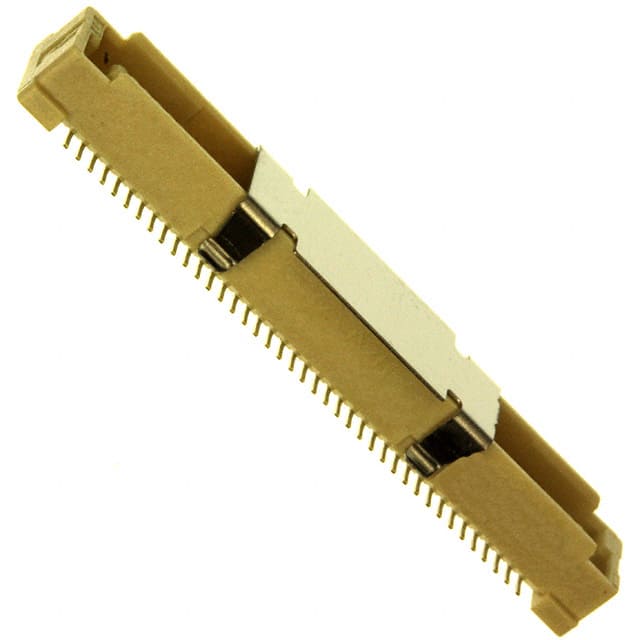

The TE Connectivity 5177983-3 is a receptacle connector designed for board-to-board mezzanine applications. It features 80 positions arranged in 2 rows with a 0.8mm pitch, surface mount termination, and a height above board of 3.75mm. The connector supports mated stacking heights of 5mm, 6mm, 7mm, and 8mm. Contacts are made of beryllium copper with a mating area gold plating (0.0002 inch minimum or 0.00038 inch per note 5) over 0.0013 inch nickel, and solder areas are matte tin plated. The housing is made of LCP (high temperature thermoplastic) with a UL 94V-0 flammability rating. A board guide feature aids alignment during assembly. The part is marked as low halogen.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.91 | $7.91 |
| 12+ | $6.63 | $6.63 |
| 36+ | $6.14 | $6.14 |
| 60+ | $5.92 | $5.92 |
| 108+ | $5.68 | $5.68 |
| 252+ | $5.35 | $5.35 |
| 504+ | $5.10 | $5.10 |
| 1,008+ | $4.85 | $4.85 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 80 positions in 2 rows.
The pitch is 0.80mm (0.031 inches).
The mounting type is Surface Mount (SMD).
