| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,750 pcs
|
2750 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Low Halogen | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| UL Flammability Rating |

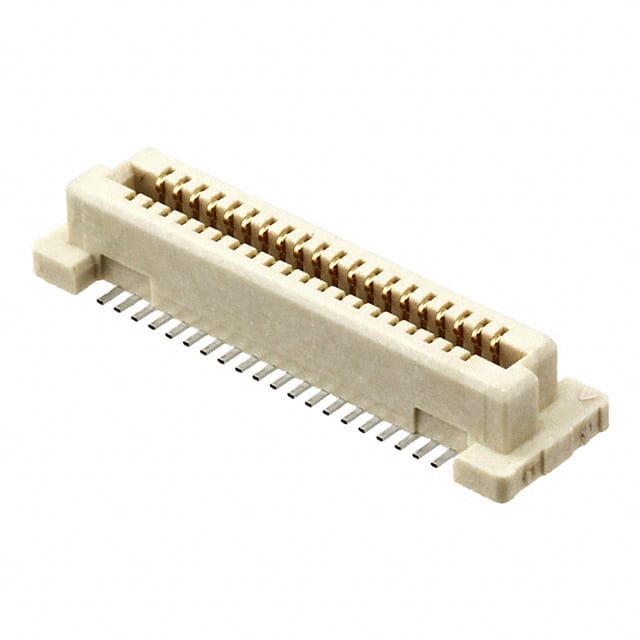

The TE Connectivity 5177983-1 is a 40 position receptacle connector featuring outer shroud contacts. It has a 0.80mm pitch and is designed for surface mount mounting. The connector supports mated stacking heights of 5mm, 6mm, 7mm, and 8mm, making it suitable for board-to-board applications.
The housing is made of Liquid Crystal Polymer (LCP) with a UL 94V-0 flammability rating and is low halogen. Contacts are made of beryllium copper with a gold finish in the contact area (0.00038 inch minimum) and matte tin on the soldering area. The connector includes a board guide feature for alignment during assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.11 | $3.11 |
| 22+ | $2.50 | $2.50 |
| 44+ | $2.38 | $2.38 |
| 66+ | $2.32 | $2.32 |
| 110+ | $2.23 | $2.23 |
| 264+ | $2.10 | $2.10 |
| 506+ | $2.01 | $2.01 |
| 1,012+ | $1.91 | $1.91 |
| 2,508+ | $1.79 | $1.79 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 5177983-1 has 40 positions.
The pitch is 0.80mm.
It uses surface mount mounting.
The contact finish is gold, with a thickness of 0.203µm (8.00µin) per the existing database, though the datasheet indicates a minimum of 0.00038 inch (380µin) on the contact area.
It supports mated stacking heights of 5mm, 6mm, 7mm, and 8mm.
The housing is made of Liquid Crystal Polymer (LCP) with a UL 94V-0 flammability rating.
Yes, it is low halogen.
