| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,123 pcs
|
3123 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

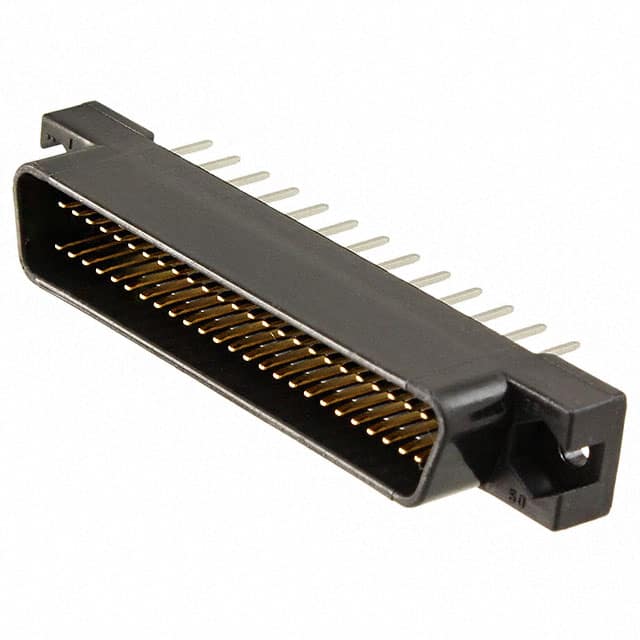

This is a D-Sub connector cap (male pins) from TE Connectivity, part number 5173280-3. It features 50 positions arranged in 2 rows with a 0.050 inch pitch and 0.100 inch row-to-row spacing, conforming to the D-Type board-to-board connector standard.
The connector uses through hole mounting with solder termination and includes a housing/shell with unthreaded flange feature. The signal contacts are finished with 8 µin of gold, ensuring reliable low-resistance connections.
Electrically, each contact is rated for 1A continuous current. The insulator is made from UL 94 V-0 rated material for flammability resistance. This connector is suitable for use in board-to-board interconnect applications requiring a compact 50-pin D-Sub interface.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.55 | $10.55 |
| 88+ | $7.69 | $7.69 |
| 176+ | $7.32 | $7.32 |
| 528+ | $6.78 | $6.78 |
| 1,056+ | $6.45 | $6.45 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This connector has 50 positions.
The connector has a 0.050 inch pitch between contacts and 0.100 inch row-to-row spacing.
Each contact is rated for 1A continuous current.
This connector uses through hole mounting with solder termination.
The contacts have a gold finish with 8 µin thickness.
The insulator material has a UL94 V-0 flammability rating.
