| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
720 pcs
|
720 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Features | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

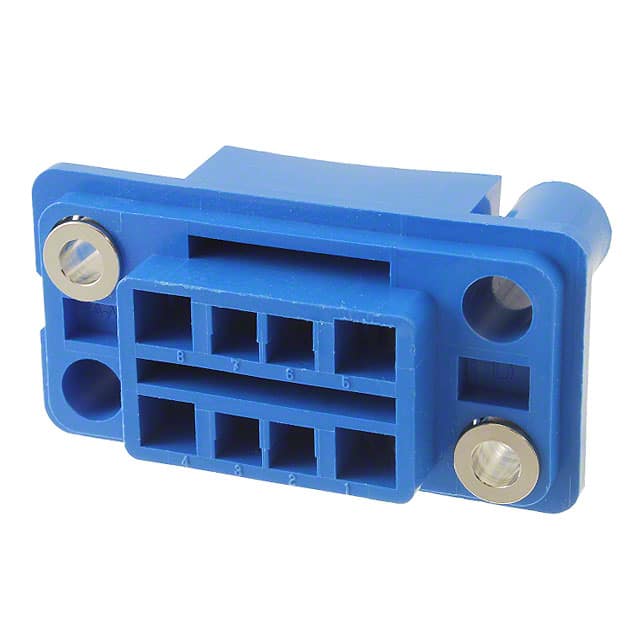

The 5172070-3 is a backplane connector housing manufactured by TE Connectivity. It is designed for use with female socket contacts in a drawer-style receptacle configuration. The housing accommodates 8 positions arranged in 2 rows, with a 6.60mm pitch. The positions are split into 4 signal and 4 power contacts. This component is panel mountable and features a blue color. It includes a guide pin for alignment during mating. The housing is RoHS3 compliant and has an MSL of 1 (unlimited). This part is cross-referenced as Digi-Key part number A113796-ND.
| Qty | Low | High |
|---|---|---|
| 1+ | $29.80 | $29.80 |
| 10+ | $25.33 | $25.33 |
| 25+ | $23.74 | $23.74 |
| 50+ | $22.61 | $22.61 |
| 180+ | $20.66 | $20.66 |
| 360+ | $19.67 | $19.67 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions total, with 4 signal and 4 power contacts.
6.60mm (0.260 inches).
Panel mount.
Drawer style.
Blue.
Yes, it features a guide pin.
2 rows.
