| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
480 pcs
|
480 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

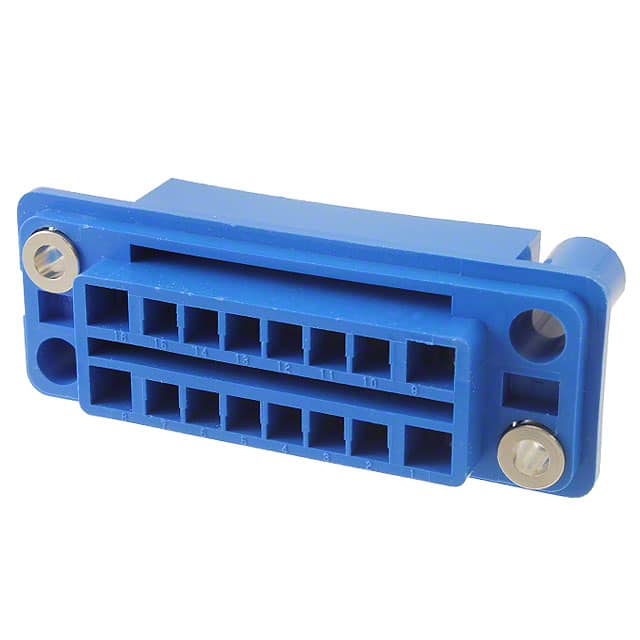

The TE Connectivity 5172068-3 is a backplane connector housing designed for use with female sockets in drawer-style applications. This receptacle housing features 16 positions, comprising 12 signal and 4 power contacts, arranged in 2 rows at a 5mm pitch. The panel mount design allows for secure installation in enclosure panels. The housing is blue, which may indicate specific application requirements or product families. As a housing, it does not include contacts; appropriate female sockets must be ordered separately. This component is suitable for high-density backplane connections where reliable signal and power distribution is needed.
| Qty | Low | High |
|---|---|---|
| 1+ | $21.10 | $21.10 |
| 10+ | $17.93 | $17.93 |
| 25+ | $16.81 | $16.81 |
| 50+ | $16.01 | $16.01 |
| 120+ | $15.05 | $15.05 |
| 360+ | $13.93 | $13.93 |
| 600+ | $13.44 | $13.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 16 positions, with 12 signal and 4 power contacts.
The pitch is 5.00mm (0.197 inches).
It is panel mount.
The housing is blue.
It has 2 rows.
The connector style is drawer.
It is used as a receptacle.
