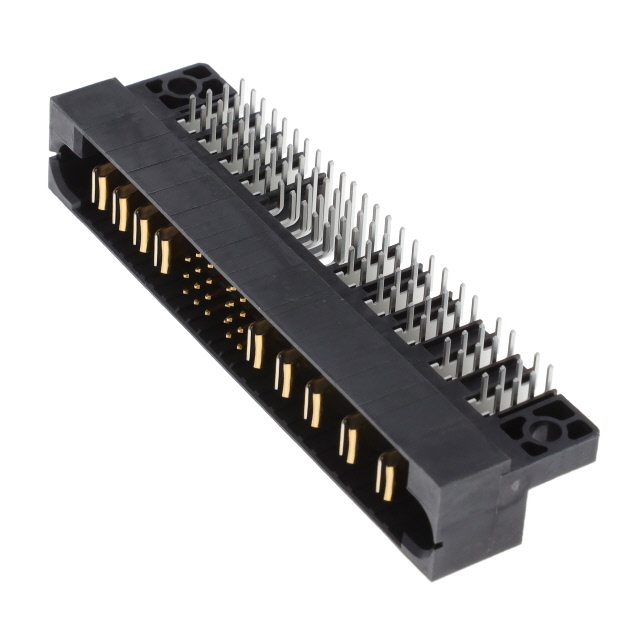

51712-009LF 26 position blade power header with 4 rows, 2.54mm pitch, through hole mounting, solder termination, and gold contacts.
Mfr Part #:

51712-009LF

Available from 1 distributors
Mfr Name: Amphenol ICC
Amphenol ICC
26 position blade power header with 4 rows, 2.54mm pitch, through hole mounting, solder termination, and gold contacts.
✓ Total Stock: 292 pcs

51712-009LF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
292 pcs
On Request
292 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

51712-009LF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connector Style
Connector Type
Contact Finish
Contact Finish Thickness
Contact Layout, Typical
Features
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Pitch
Tape & Reel
Termination
Termination Style
View Similar Products (0)

51712-009LF Description

Short technical summary and product information.

This is a 26-position blade power header from Amphenol ICC, part number 51712-009LF. It features a 4-row configuration with a 2.54mm pitch and all positions loaded. The connector is designed for through-hole mounting with solder termination. The contact finish is gold or gold, GXT™ with a thickness of 0.76µm. The connector includes board lock and mating guide features. The contact layout is 20 signal and 6 power. The housing is black in color. This component is suitable for power distribution in backplane applications where reliable, high-current connections are required.

51712-009LF Quick Information

Product Type: Blade Power Header
Canonical Name: Header, Male Pins and Blades, Blade Power, 26 Position, 4 Row, 2.54 mm Pitch, Through Hole, Solder
Subcategory: Blade Power Connectors

51712-009LF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

51712-009LF Features

  • 26 positions with 20 signal and 6 power.
  • 4 rows with 2.54mm pitch configuration.
  • Through hole mounting with solder termination.
  • Gold contact finish with 0.76µm thickness.
  • Includes board lock and mating guide features.

51712-009LF Applications

  • Ideal for backplane power distribution systems.
  • Used in server and telecom equipment.
  • Suitable for industrial control modules.
  • Power supply to PCB connections.
  • Signal and power in one connector.

51712-009LF FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

26 positions, all loaded.

What is the pitch?

2.54 mm.

What is the mounting type?

Through hole with solder termination.

How many rows does it have?

4 rows.

What is the contact finish?

Gold or gold, GXT™ with a thickness of 0.76 µm.

What is the contact layout?

20 signal and 6 power contacts.

What features are included?

Board lock and mating guide.
