| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Contact Material | |
| Contact Plating | |
| Contact Resistance | |
| Contact Spacing | |
| Current Rating | |
| Dielectric Withstanding Voltage | |
| Features | |
| Insulation Resistance | |
| Insulator Material | |
| Lead Spacing | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| UL |

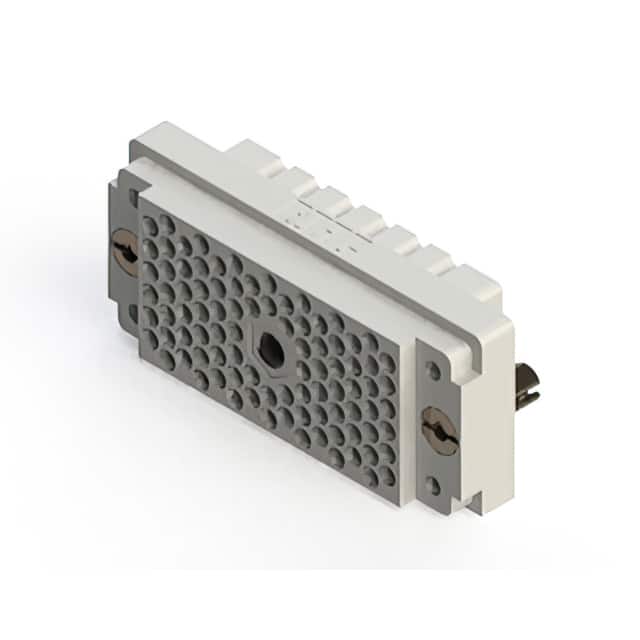

The Edac 516-090-000-402 is a rack and panel connector housing from the 516 series, designed for use with non-gendered contacts. It accommodates 90 contacts arranged in 13 rows with a contact spacing of 3.81mm (0.150") and row spacing of 3.30mm (0.130") or 3.81mm (0.150"). The housing is constructed from gray polycarbonate and includes jackscrew sockets and mating guides for secure mating.
Electrically, the housing supports a current rating of 8.5A per contact, with a maximum contact resistance of 10 milliohms. The dielectric withstanding voltage is 2000V AC rms at sea level, and insulation resistance is a minimum of 5000 megohms. The operating temperature range is -40°C to +105°C.
This housing is intended for use with Edac 516 series contacts, which are gold-plated over nickel for reliable performance. The connector is RoHS compliant and UL certified. It is suited for backplane and rack and panel interconnect applications requiring high contact density and reliable electrical performance.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.80 | $10.80 |
| 10+ | $9.18 | $9.18 |
| 25+ | $8.60 | $8.60 |
| 50+ | $8.19 | $8.19 |
| 100+ | $7.80 | $7.80 |
| 250+ | $7.31 | $7.31 |
| 500+ | $6.96 | $6.96 |
| 1,000+ | $6.63 | $6.63 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
90 positions.
3.81mm (0.150") contact spacing.
8.5A per contact.
-40°C to +105°C.
2000V AC rms at sea level.
Gray polycarbonate.
Yes, RoHS compliant and UL certified.
