| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
732 pcs
|
732 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Lead Spacing | |
| Lead Style | |
| Level, Class | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Style | |
| Termination |

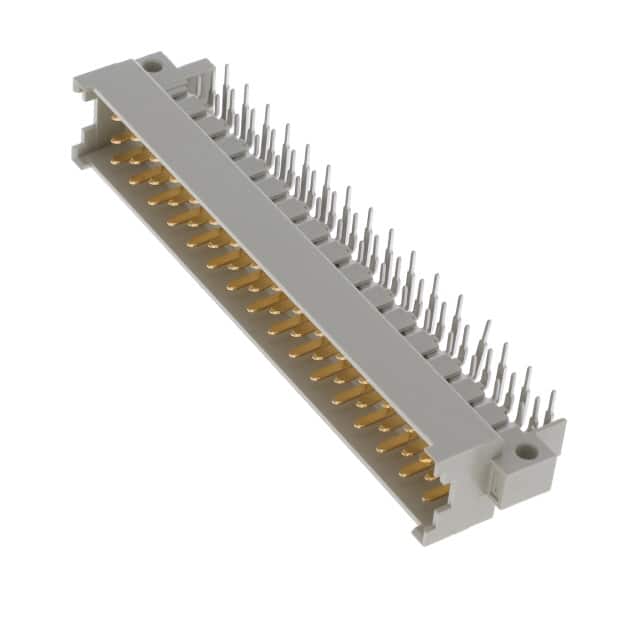

The Amphenol ICC 5159009486354611LF is a DIN 41612 header connector with 96 male pins arranged in 3 rows at a 2.54mm pitch. It features gold contact finish for reliable signal integrity and is designed for through hole right angle mounting with solder termination.
This connector is suitable for backplane and rack-and-panel interconnect applications requiring high pin count and robust mechanical retention. The right angle orientation allows for efficient PCB layout in space-constrained designs.
The part is RoHS3 compliant and has an MSL of 1 (unlimited floor life). It is classified as Style F per DIN 41612 standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $12.81 | $12.81 |
| 10+ | $10.89 | $10.89 |
| 25+ | $10.20 | $10.20 |
| 50+ | $9.72 | $9.72 |
| 168+ | $8.92 | $8.92 |
| 336+ | $8.50 | $8.50 |
| 504+ | $8.26 | $8.26 |
| 1,008+ | $7.86 | $7.86 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 96 total positions, with 48 positions loaded.
The pitch is 2.54mm (0.100 inches).
It has 3 rows of pins.
Through hole, right angle mounting.
Gold contact finish.
Style F per DIN 41612.
