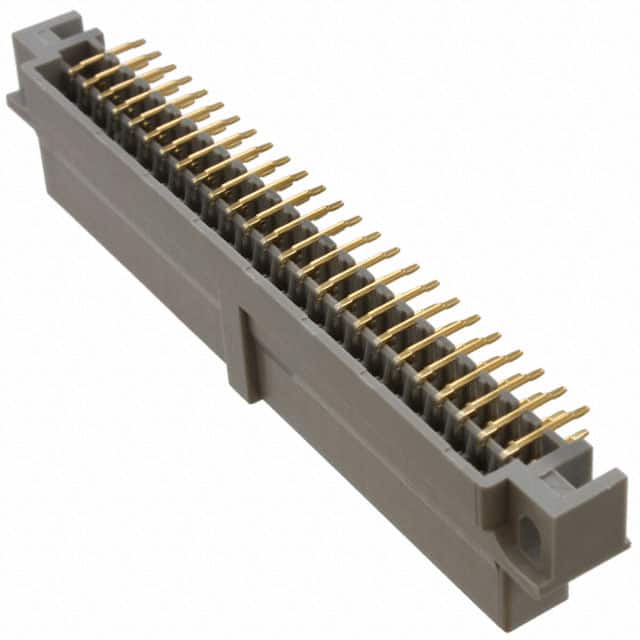

The 3M 5150-B7A2PL is a 50-position polarized boardmount socket with right angle solder tails, part of the 5100 series. It is designed for board-to-board or cable connections and features a centerbump polarization for proper alignment.
Key specifications include a 2.54mm pitch, 2 rows, and gold contacts (30µin gold on the wiping area, gold flash on the solder tails). The insulator is made of glass filled polyester (PBT) in gray color, with a flammability rating of UL94 V-0. The contact material is copper alloy with a nickel underplating.
Electrically, the receptacle is rated for 1A current and 1000V voltage, with insulation resistance greater than 1×10^9 Ω at 500VDC and withstanding voltage of 1000VRMS at sea level. The operating temperature range is -55°C to +105°C.
Mounting is through hole, right angle, with solder termination. The connector includes a mounting flange and polarizing key. It mates with standard low profile shrouded headers (2.54mm pitch). RoHS compliant per RIA E1 and C1. UL file number E68080. Maximum process temperature for wave soldering is 191°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $17.80 | $17.80 |
| 10+ | $15.12 | $15.12 |
| 100+ | $12.86 | $12.86 |
| 500+ | $11.48 | $11.48 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 positions.
2.54mm (0.100 inch).
1A.
1000V.
Through hole, right angle.
Gold, 30µin on wiping area, gold flash on solder tails.
-55°C to +105°C.
