| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
160 pcs
|
160 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Failure Rate | |
| Lens Size | |
| Lens Style | |
| Mounting Type | |
| SVHC Present | |
| Type |

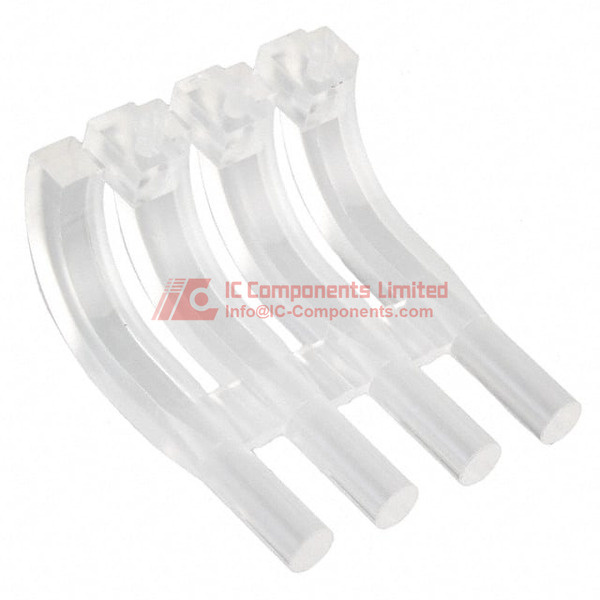

This Dialight 515-1052F is a light pipe component designed for integration into electronic assemblies. It features a rigid construction with an RJ45 jack interface. The component has a clear, round lens measuring 3.9mm, topped with a flat surface for optimal light transmission or indication.
The light pipe is designed for board mounting and utilizes a snap-in mechanism for secure and easy installation. Its configuration supports 4 wide elements, contributing to its light guiding capabilities. The series designation is 515, and the base product number is 5151052. This component is classified under Optoelectronics and specifically within the Light Pipes category.
Packaging for the 515-1052F is provided in bulk. The component is specified as RoHS3 Compliant, indicating adherence to restrictions on hazardous substances. The Moisture Sensitivity Level (MSL) is rated as 1 Unlimited, and the REACH status is unaffected. These specifications make it suitable for various manufacturing and assembly processes where environmental compliance and handling precautions are necessary.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.07 | $0.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Dialight 515-1052F is a rigid light pipe with an RJ45 jack.
The lens style is round with a flat top, and the lens size is 3.9mm.
It is designed for board mounting with a snap-in mechanism.
The RoHS status is RoHS3 Compliant.
The MSL is 1 Unlimited.
