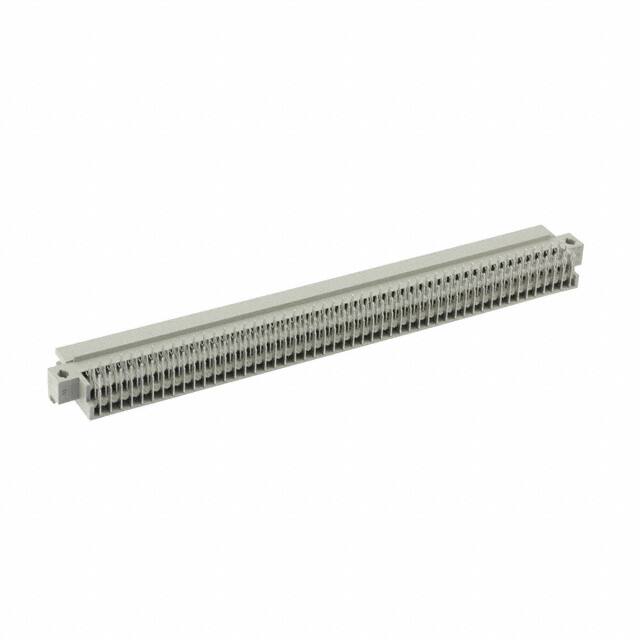

5148295-5 DIN 41612 Type R receptacle with 150 female socket positions in 3 rows, 2.54mm pitch, right angle through hole press-fit termination, gold contact finish.
Mfr Part #:

5148295-5

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
DIN 41612 Type R receptacle with 150 female socket positions in 3 rows, 2.54mm pitch, right angle through hole press-fit termination, gold contact finish.
✓ Total Stock: 62 pcs
$ Price Range: $10.42 - $18.30

5148295-5 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tokyo Device ✓
Non-Authorised Inventory information
62 pcs
On Request
62 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5148295-5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Level, Class
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Pitch
Style
Tape & Reel
Termination
Termination Style
View Similar Products (0)

5148295-5 Description

Short technical summary and product information.

The TE Connectivity 5148295-5 is a DIN 41612 Type R receptacle connector designed for backplane applications. It features 150 female socket positions arranged in 3 rows with a 2.54mm pitch, providing high-density interconnection in a compact form factor.



This connector uses press-fit termination for reliable solderless connections and is mounted through hole at a right angle orientation, making it suitable for perpendicular board-to-board configurations. The contacts are finished with gold for corrosion resistance and reliable signal integrity.



The connector is rated as DIN Level Class 2, indicating a defined performance level for industrial environments. It is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited floor life).

5148295-5 Quick Information

Product Type: DIN 41612 Backplane Connector
Canonical Name: TE Connectivity DIN 41612 Type R Receptacle, 150 Position, 3 Row, Press-Fit
Subcategory: DIN 41612

5148295-5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5148295-5 Estimated Pricing

Qty Low High
1+ $18.30 $18.30
56+ $18.29 $18.29
112+ $17.71 $17.71
252+ $10.42 $10.42

Estimated market price range - modelled values for guidance only, not live distributor offers.

5148295-5 Features

  • 150 positions in 3 rows at 2.54mm pitch.
  • Right angle through hole press-fit termination.
  • Gold contact finish for reliable connections.
  • DIN 41612 Type R receptacle design.
  • DIN Level Class 2 rated connector.

5148295-5 Applications

  • Backplane interconnection in industrial electronics.
  • High-density board-to-board connector systems.
  • Telecommunications and networking equipment.

5148295-5 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the connector type of the 5148295-5?

Receptacle, Female Sockets.

How many positions does the 5148295-5 have?

150 positions, all loaded.

What is the pitch of the 5148295-5?

2.54mm (0.100").

What is the mounting type of the 5148295-5?

Through Hole, Right Angle.

What is the termination style of the 5148295-5?

Press-Fit.

What is the contact finish of the 5148295-5?

Gold.

What is the DIN level class of the 5148295-5?

Class 2.
