| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,356 pcs
|
2356 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
650 pcs
|
650 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

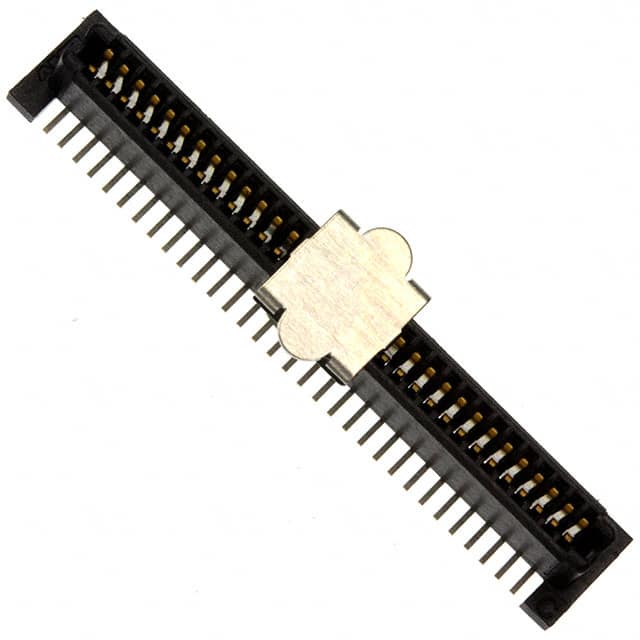

The TE Connectivity 5146893-1 is a 64-position receptacle connector featuring outer shroud contacts designed for mezzanine board-to-board stacking. It is configured with 2 rows at a 1.00mm pitch for high-density interconnection. The connector is surface mount (SMD) and has a gold contact finish with a thickness of 30.0µin (0.76µm) for reliable conductivity and corrosion resistance. Its height above board is 0.211" (5.35mm) and it supports mated stacking heights of 8mm, 9mm, or 10mm, allowing flexibility in board spacing. A board guide feature aids alignment during assembly. The connector is RoHS3 compliant (unverified) and has an MSL of 1 Unlimited. Typical applications include telecommunication equipment, computing devices, and industrial electronics where compact vertical interconnects are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.92 | $5.92 |
| 10+ | $5.03 | $5.03 |
| 25+ | $4.72 | $4.72 |
| 50+ | $4.49 | $4.49 |
| 100+ | $4.28 | $4.28 |
| 250+ | $4.01 | $4.01 |
| 650+ | $3.75 | $3.75 |
| 1,300+ | $3.57 | $3.57 |
| 1,950+ | $3.47 | $3.47 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 64 positions arranged in 2 rows.
The pitch is 1.00mm.
Surface Mount (SMD).
Gold with a thickness of 30.0µin (0.76µm).
8mm, 9mm, and 10mm.
Yes, it includes a board guide.
