| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
135 pcs
|
135 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Thickness | |
| Card Type | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Gender | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Read Out | |
| Termination |

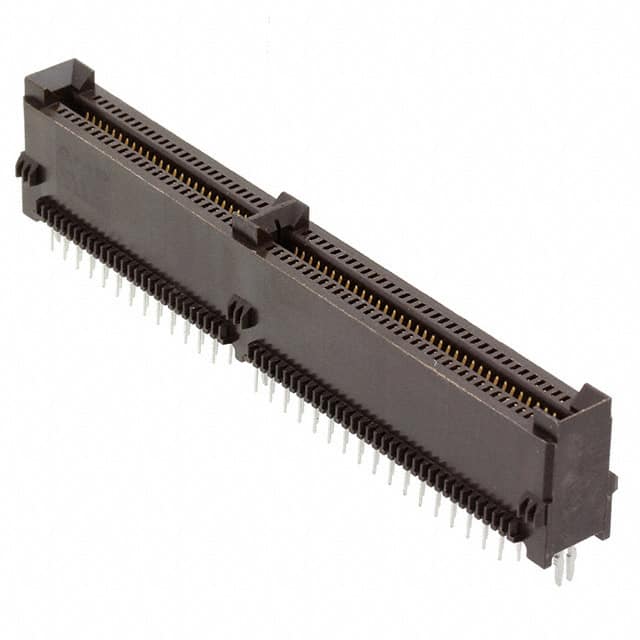

The TE Connectivity 5145427-5 is a dual edge female card edge connector designed for high-density interconnection in electronic systems. It features 240 positions arranged in two rows with a 2.54mm (0.100 inch) pitch, accommodating card thicknesses from 0.054 to 0.070 inches (1.37mm to 1.78mm). The connector uses phosphor bronze contacts with a 30 microinch gold finish for reliable signal integrity. It is mounted via through hole and terminated by soldering, making it suitable for permanent board-to-card connections. The brown housing includes a board lock feature for secure attachment during assembly. This connector is commonly used in backplane and edge card applications where high pin count and robust mechanical retention are required.
The connector has 240 positions.
The pitch is 2.54mm (0.100 inch).
The mounting type is through hole.
The contact material is phosphor bronze with a gold finish of 30 microinches.
It supports card thicknesses from 0.054 to 0.070 inches (1.37mm to 1.78mm).
