| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,362 pcs
|
3362 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Type | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Insertion, Removal Method | |
| Lead Style | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Packaging Type | |
| package_size |

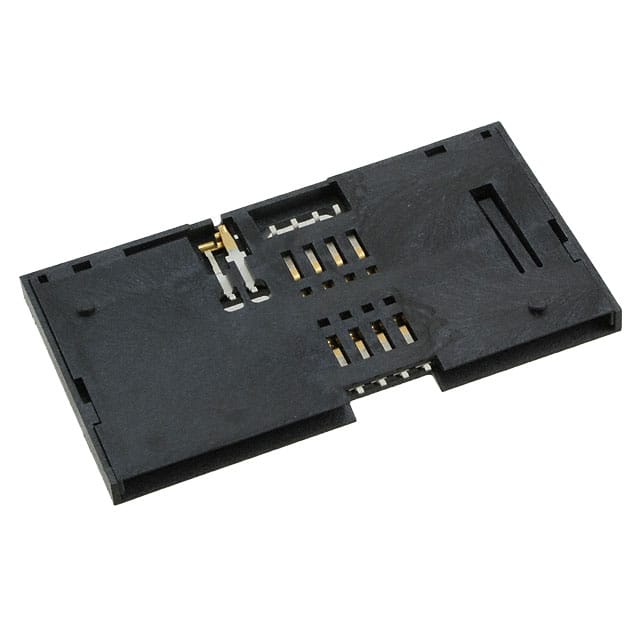

The TE Connectivity 5145300-2 is a smart card connector designed for push-in/pull-out card insertion. It has 10 positions arranged as 8 signal plus 2 additional, and is mounted via surface mount technology with a right angle orientation.
Gold contact finish with 0.76 µm thickness ensures reliable connectivity. The connector includes a board guide for alignment and an integrated switch. The mounting feature is standard top. Height above board is 3.66 mm.
The component is supplied in tray packaging with dimensions 333.5 mm x 288.8 mm. It is claimed RoHS3 and REACH compliant, and MSL Level 1 (unlimited). Note: compliance data is unverified. The datasheet is preliminary and not released for production.
This connector is suitable for use in smart card readers and similar applications requiring a compact, surface mount interface. The push-pull mechanism allows easy card insertion and removal.
| Qty | Low | High |
|---|---|---|
| 1+ | $14.95 | $14.95 |
| 10+ | $12.71 | $12.71 |
| 28+ | $11.82 | $11.82 |
| 56+ | $11.25 | $11.25 |
| 112+ | $10.72 | $10.72 |
| 252+ | $10.12 | $10.12 |
| 504+ | $9.64 | $9.64 |
| 1,008+ | $9.18 | $9.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 10 positions total, configured as 8 signal and 2 additional.
Surface mount, right angle.
Push in, pull out.
Gold with 0.76 µm thickness.
Board guide and switch.
RoHS3 compliant, but status is unverified.
