| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
797 pcs
|
797 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request | |
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
260 pcs
|
260 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Type | |
| Connector Type | |
| Contact Finish | |
| Features | |
| Height Above Board | |
| Insertion, Removal Method | |
| Lead Style | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions |

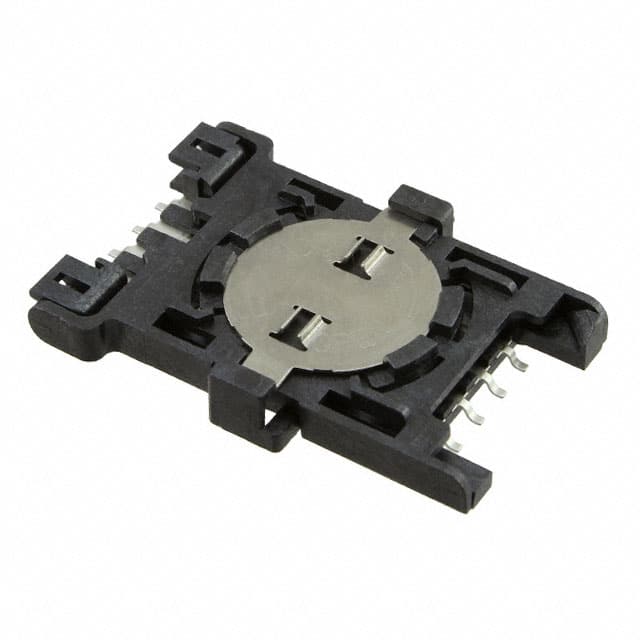

The 5145299-2 is a SIM/SAM card connector from TE Connectivity, featuring a connector and ejector mechanism with a hinged lid for secure card insertion and removal. The connector supports 8 positions (6+2) and is designed for surface mount, right angle mounting.
The mounting feature is normal, standard - top, with a height above board of 0.160 inches (4.06mm). Contacts are gold finished for reliable connectivity. Additional features include board guide, rotation locking disc, and a switch.
This connector is suitable for applications requiring SIM and SAM card interfacing in devices such as mobile phones, tablets, and other portable electronics. The right angle orientation allows for space-efficient PCB layouts.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.98 | $2.98 |
| 10+ | $2.65 | $2.65 |
| 25+ | $2.64 | $2.64 |
| 50+ | $2.61 | $2.61 |
| 100+ | $2.36 | $2.36 |
| 250+ | $2.34 | $2.34 |
| 500+ | $3.26 | $3.26 |
| 1,000+ | $3.11 | $3.11 |
| 1,500+ | $3.02 | $3.02 |
| 2,500+ | $2.91 | $2.91 |
| 3,500+ | $2.84 | $2.84 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
SIM and SAM cards.
8 positions (6+2).
Surface mount, right angle.
0.160 inches (4.06mm).
Gold.
Hinged lid.
Board guide, rotation locking disc, and switch.
