| Category | |
| Manufacturer Name | |
| Card Thickness | |
| Card Type | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Gender | |
| Mounting Type | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Read Out | |
| Termination | |
| Termination Style |

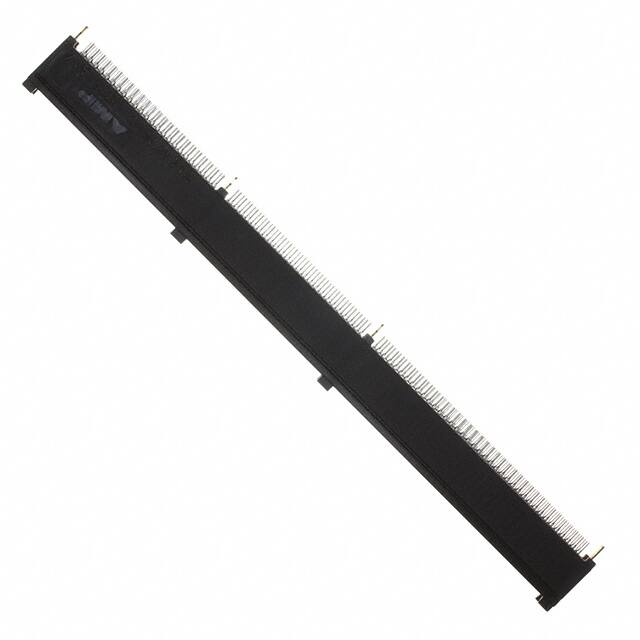

This TE Connectivity 5145275-2 is an NLX female edgeboard connector designed for reliable connections. It offers 170 positions with a pitch of 2.54mm (0.100"). The contact finish is gold, providing excellent conductivity and durability.
The connector features a through hole mounting type and solder, staggered termination style. It operates within a temperature range of 0°C to 85°C. The card thickness is 1.57mm (0.062").
This component is suitable for applications requiring a robust card edge connection. Its design includes features like board lock for secure mounting.
The TE Connectivity 5145275-2 connector has 170 positions.
The pitch of the TE Connectivity 5145275-2 edgeboard connector is 2.54mm (0.100").
The 5145275-2 connector uses through hole mounting.
The operating temperature range for this connector is 0°C to 85°C.
The card thickness supported by the 5145275-2 is 1.57mm (0.062").
