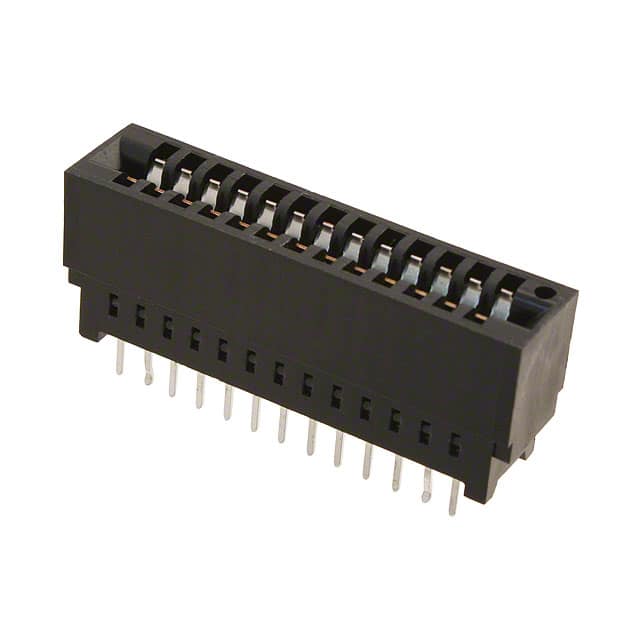

This edgeboard connector from TE Connectivity (MPN 5145274-1) is a dual readout female connector designed for non-specified dual edge cards. It offers 26 positions arranged in two rows at a 2.54mm (0.100") pitch. The connector accepts card thicknesses ranging from 0.054" to 0.070" (1.37mm to 1.78mm).
Contacts are made from phosphor bronze with a 30.0µin (0.76µm) gold finish, ensuring reliable electrical connections. The operating temperature range is -55°C to 85°C. The connector supports through-hole mounting using press-fit termination technology.
This connector is suitable for applications requiring a robust card edge interface. The black housing and dual readout configuration provide flexibility for various PCB designs. It is rated for up to 85°C operating temperature, making it suitable for industrial environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.70 | $3.70 |
| 10+ | $3.14 | $3.14 |
| 25+ | $2.94 | $2.94 |
| 50+ | $2.80 | $2.80 |
| 100+ | $2.67 | $2.67 |
| 252+ | $2.50 | $2.50 |
| 504+ | $2.38 | $2.38 |
| 1,008+ | $2.27 | $2.27 |
| 2,520+ | $2.13 | $2.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
26 positions (13 per row, 2 rows).
2.54mm (0.100").
Through-hole mounting with press-fit termination.
0.054" to 0.070" (1.37mm to 1.78mm).
Gold plating with 30.0µin (0.76µm) thickness on phosphor bronze contacts.
-55°C to 85°C.
Female.
