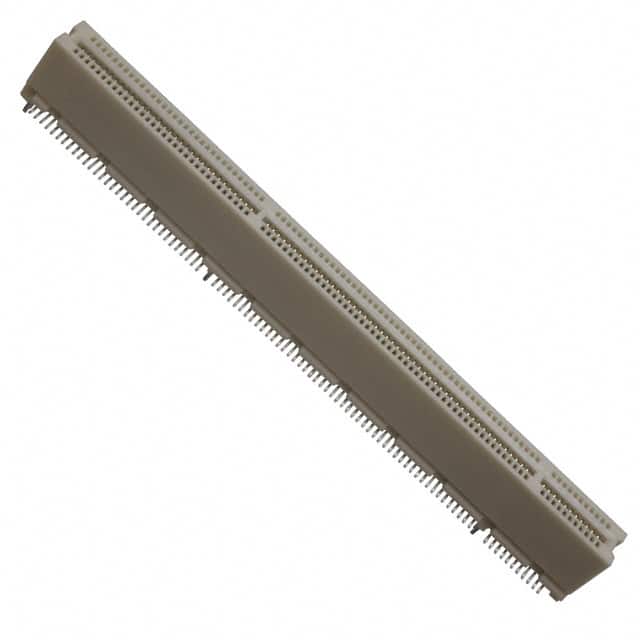

The 5145246-1 from TE Connectivity is a PCI Universal card edge connector designed for 3.3V and 5V 64-bit PCI cards. It features a female gender with 184 total positions arranged in three sections (11, 49, 32) and dual readout for high-density signal routing. The connector has a pitch of 1.27mm (0.050") and supports a card thickness of 1.57mm (0.062").
Contact surfaces are gold-plated with a thickness of 30.0µin (0.76µm) over phosphor bronze material, ensuring reliable electrical performance and corrosion resistance. The connector includes a board lock feature for secure mechanical attachment to the PCB. It is surface mount with solder termination, suitable for automated assembly processes.
This edgeboard connector is RoHS3 compliant, REACH unaffected, and has an MSL rating of 1 (unlimited floor life). The natural color housing and dual readout design make it suitable for various edgecard applications, particularly in computer and industrial systems requiring PCI slot interfaces.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.51 | $9.51 |
| 10+ | $8.08 | $8.08 |
| 32+ | $7.44 | $7.44 |
| 64+ | $7.09 | $7.09 |
| 128+ | $6.75 | $6.75 |
| 256+ | $6.43 | $6.43 |
| 512+ | $6.12 | $6.12 |
| 1,024+ | $5.83 | $5.83 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 184 total positions, configured as 11, 49, and 32 in three sections.
The pitch is 1.27mm (0.050").
The connector is surface mount with solder termination.
It supports a card thickness of 0.062" (1.57mm).
The contacts are gold-plated with a thickness of 30.0µin (0.76µm).
Yes, it has dual readout for high-density signal routing.
The connector is female.
